Brand Name: | SOGA |
Model Number: | BA-H1200W |
Payment Terms: | L/C, T/T, Western Union |

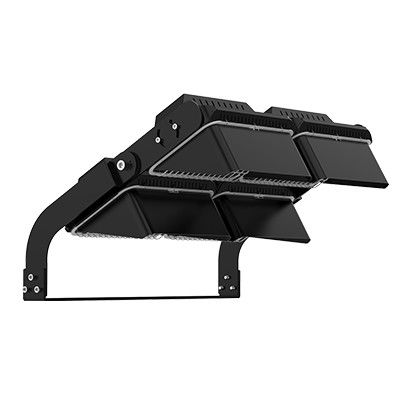

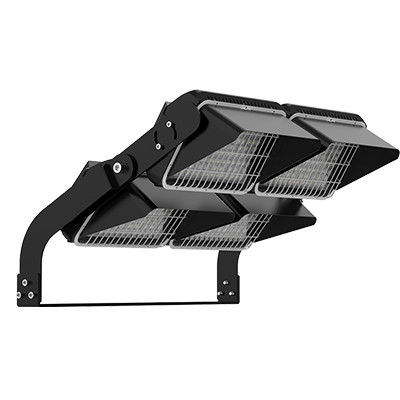

Outdoor Flood Lights 10KV Surge Protection Rotable Module LED Sports Lighting
SPECIFICATIONS
Compare with Barrett E and Y series, H series are with even wider range of applications. Except the sports lighting application, it is also the perfect option for Construction site, Airport, Seaport, Public Square etc.
From 500W to 1800W
Precise target lighting with the rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI>90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
Warranty | 5 Yrs Warranty |
Wireless Control | Available |
IP Rate | IP66 |
Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
Bracket | Stainless Steel |
Optional Accessories | Light Spill Cover;protection Shield; Laser Pen; Spd |
Ik Rate | IK08 |
Driver | Meanwell, Sosen, Inventronics |
L70 Hour | >60.000h |
Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
Driver Box | Detachable SOGA Electrical box |
MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Higher Uniformity
Protection Mesh Cover on Back
Keep the lamp always clean from the bird droppings or leaves,
avoid the birds build the nests on lamp. The perfect heat
dissipation performance on lamp will be ensured at the same time.
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
![]() |
