| Brand Name: | SOGA |
| Model Number: | BA-H900W |
| Payment Terms: | L/C, T/T, Western Union |

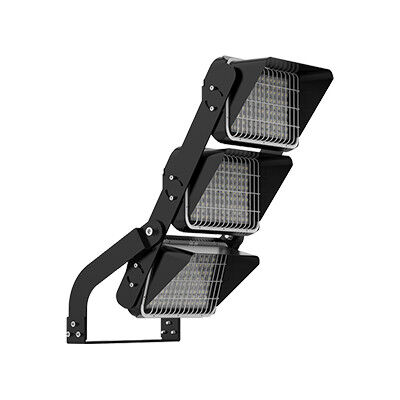

Outdoor Flood Lights Stand 17 Grade Windload Anti-Corrosion LED Sports Lighting
SPECIFICATIONS
SOGA Barrett H Series LED sports light delivers both precise symmetric and asymmetric light distribution, the unique backlight cut-off controlling and professional asymmetric optical design can effectively avoid the spill light in the neighborhood. With these outstanding features and excellent lighting performance, Barrett H Series LED sports light will be your best choice for high residential area lighting and professional sports stadium lighting. Meanwhile, the latest LED technology we applied on Barrett Series provides very low light depreciation and high lumen output, saving up to 60% energy compared to traditional HID flood lights. Smart wireless long-distance dimming control provides more energy saving. Rotatable modules allows slightly adjusting light distribution to reach a more precise lighting on your fields.
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Ultra-thick Stainless Steel Bracket
7.5mm stainless steel installation bracket, Rugged
Weather-Tight Design
Rotatable Modular Design
Each module can be rotated vertically 40 degree ,
bring you more flexible lighting solutions
and more precise target lighting.
Scope of application
the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
|
