| Brand Name: | SOGA |
| Model Number: | SG-G1-50W |
| Payment Terms: | L/C, T/T, Western Union |
Outdoor Flood Lights Higher Lighting Uniformity Great Performance Outdoor LED Light
SPECIFICATIONS

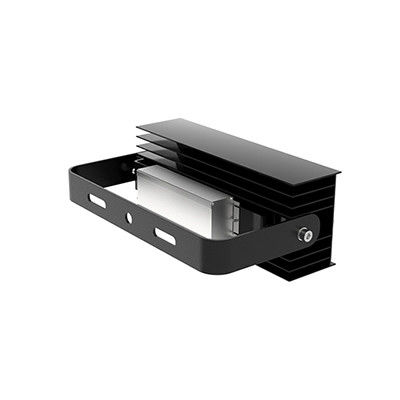

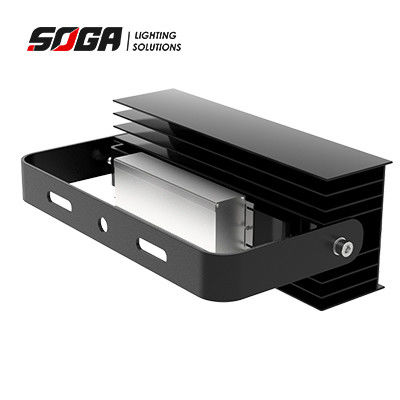

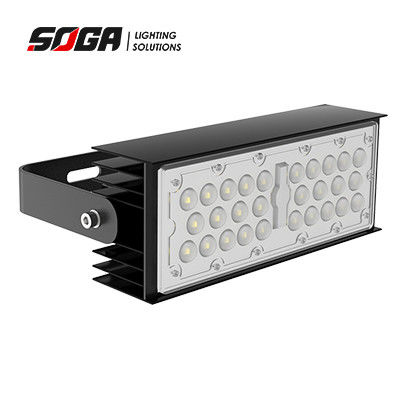

Innovative rotatable module makes more flexible and efficient light distributions. Focus Series lamp covers the function of both flood light and high bay. Anodized alluminum modules, stainless steel screws and powder-coated stainless steel holders and bracket make the whole lamp anticorrosive without cracking or peeling. Finlike heatsink design provides perfect heat management and improves working lifetime. Modular design not only allows easy assembly and maintenance but also provides flexibility of power consumption. The viewing angle of modules is -40 to 40 degree. Fixing angle of lamp ranges from -40 to 40 degree
| Wireless Control | Available |
| Warranty | 5 yrs warranty |
| Beam Angle | 15, 30×70, 40, 49×21, 60,90, 136×70 |
| IP Rate | IP65 |
| Housing color | Gray or Black |
| L70 Hour | ＞60,000 H |
| wattage/module | 50W |
| Wind Load | Can stand 17 Class Wind load (56.1~61.2 m/s) |
| Dimming Solutions | 1~10Vdc / 10V PWM signal / resistance / Timer dimming |
| MODEL | SG-G1-50W | SG-G1-100W | SG-G1-150W | SG-G1-200W | SG-G1-300W | SG-G1-400W | SG-G1-400W | SG-G1-600W |
| MODEL QTY | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| POWER | 50W | 100W | 150W | 200W | 300W | 400W | 500W | 600W |
| LUMEN OUTPUT | 6750LM | 13500LM | 20250LM | 27000LM | 49500LM | 54000LM | 54000LM | 54000LM |
Cover Full Range of Power from 50W to 500W
50W per module, G1 series vary from 50w to 500W, can meet most general outdoor lighting need, like billboard lighting, building wall, area lighting, parking lot, indoor sport court, construction site etc.
High-quality LED Chips and Driver
As the two most important parts of LED lamps, G1 series floodlight also adopting the high-quality brand for the chips and drivers.
Luxeon 3030 Chips and Meanwell HLG driver is our standard version. Customized version can be made after the quality evaluation
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
|
