| Brand Name: | SOGA |
| Model Number: | SG-G1-100W |
| Payment Terms: | L/C, T/T, Western Union |

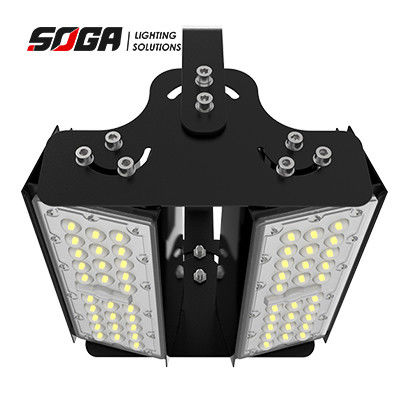

Professional Thermal Management High Quality LED Chips Floodlight Outdoor Flood Lights
SPECIFICATIONS
Innovative rotatable module makes more flexible and efficient light distributions. Focus Series lamp covers the function of both flood light and high bay. Anodized alluminum modules, stainless steel screws and powder-coated stainless steel holders and bracket make the whole lamp anticorrosive without cracking or peeling. Finlike heatsink design provides perfect heat management and improves working lifetime. Modular design not only allows easy assembly and maintenance but also provides flexibility of power consumption. The viewing angle of modules is -40 to 40 degree. Fixing angle of lamp ranges from -40 to 40 degree
| Wireless Control | Available |
| Warranty | 5 yrs warranty |
| Beam Angle | 15, 30×70, 40, 49×21, 60,90, 136×70 |
| IP Rate | IP65 |
| Housing color | Gray or Black |
| L70 Hour | ＞60,000 H |
| wattage/module | 50W |
| Wind Load | Can stand 17 Class Wind load (56.1~61.2 m/s) |
| Dimming Solutions | 1~10Vdc / 10V PWM signal / resistance / Timer dimming |
| MODEL | SG-G2-120W | SG-G2-240W | SG-G2-360W | SG-G2-480W | SG-G2-720W | SG-G2-960W | SG-G2-1200W | SG-G2-1440W |
| MODEL QTY | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| POWER | 120W | 240W | 360W | 480W | 720W | 960W | 1200W | 1440W |
| LUMEN OUTPUT | 18000LM | 36000LM | 54000LM | 72000LM | 108000LM | 144000LM | 180000LM | 216000LM |
High-quality LED Chips and Driver
As the two most important parts of LED lamps, G1 series floodlight also adopting the high-quality brand for the chips and drivers.
Luxeon 3030 Chips and Meanwell HLG driver is our standard version. Customized version can be made after the quality evaluation
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
|
