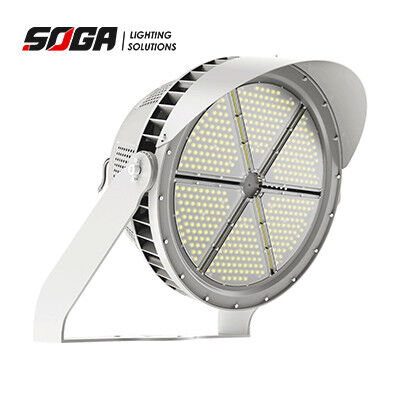

SOGA LUNA series high-power LED stadium light is a professional modular sports lighting solution engineered for football fields, baseball courts, tennis courts and large sports stadiums. Adopting premium Lumileds Luxeon 5050 LED chips and die-cast aluminum heat sink, this fixture delivers ultra-high luminous efficiency up to 150LM/W, outstanding corrosion resistance, reliable long lifespan and full smart dimming & wireless control options to meet all professional sports venue lighting demands.

SOGA LUNA Series LED Stadium Flood Light | High Mast Sports Field Lighting - Seven

Core Advantages

Premium Anti-Corrosion Structure

Full powder-coated aluminum housing + stainless steel screws & mounting bracket, effectively prevent cracking, peeling and rust for long-term outdoor exposure. Rotatable 120° installation bracket allows flexible angle adjustment during installation.
Excellent Heat Dissipation & Ultra Long Lifespan

Integrated die-cast heat sink with no moving parts maximizes heat dissipation performance, extending service life over 100,000 hours, with 5-year factory warranty.
Modular Plug & Play Design

Split detachable driver box with quick plug connection system, easy for on-site assembly, wiring and later maintenance; modular structure supports flexible power selection from 300W to 800W.
High Efficiency & Energy Saving

Equipped with Lumileds Luxeon 5050 LED chips, luminous efficiency reaches 150LM/W, drastically cut power consumption vs traditional metal halide stadium lamps.
IP65 Waterproof & Strong Wind Resistance

Compliant with EN60529 IP65 waterproof rating, works steadily at -40°C ~ 55°C operating temperature. Wind resistance up to Class 17 (56.1~61.2m/s), suitable for coastal & high-altitude open venues.
Multi Smart Control Solutions Available

Support 0-10V dimming, DALI, CLO constant light output, full Zigbee wireless control system; optional wireless entertainment system to sync RGB color changing effects with music via phone & PC.
Customizable Light Distribution & Anti-Pollution Accessory
30°/60°/90° multiple beam angles for different venue lighting layout; optional light spill cover to reduce light pollution, ideal for stadiums near airports & residential areas.

Item	Details
LED Chip	Lumileds Luxeon 5050
Luminous Efficacy	150LM/W
Power Options	300W / 400W / 600W / 700W / 800W
Lumen Output	300W:45,000LM; 400W:60,000LM; 600W:90,000LM; 700W:105,000LM; 800W:120,000LM (adjustable by CCT/CRI/beam angle)
CCT Options	3000K / 4000K / 5000K / 5700K / 6500K
CRI	Ra70 / Ra80 / Ra90
Input Voltage	AC90-305V / AC108-528V
Power Factor	>0.95
Waterproof Grade	IP65 (EN60529)
Operating Temperature	-40°C ~ +55°C
Wind Resistance	Class 17 wind load (56.1~61.2m/s)
Housing Material	Die-cast Aluminum (Gray finish)
Bracket Material	Iron / Stainless Steel Optional
LED Driver	Meanwell / Sosen / Inventronics / Zigbee Tech
Dimming Methods	0-10V Dimming, DALI, CLO, Zigbee Wireless Control
Beam Angle	30° / 60° / 90°
Lifespan	>100,000 Hours
Warranty	5 Years

Model & Dimension Info

SG-LUNA-300W / SG-LUNA-400W

Lamp Diameter: Φ400mm
Overall Size: 445.6mm(L) * 321mm(W) * 483mm(H)
Base Width: 195mm

SG-LUNA-600W / SG-LUNA-700W / SG-LUNA-800W

Lamp Diameter: Φ480mm
Overall Size: 537mm(L) * 537mm(W) * 581.3mm(H)
Base Width: 239mm

Optional Accessories

Light Spill Cover (anti light pollution)
20KV SPD Surge Protection Device
Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch
Laser Pen with Suction Mounted Plate

SOGA Full Wireless Smart Control System

Our integrated Zigbee wireless lighting system is tailor-made for stadium projects, combining plug & play wiring and split driver box design to bring 5 major benefits:

Smarter & faster remote lighting control
Simplified, one-click operation via mobile/PC
Safer wiring & lower installation labor cost
More stable & long-term running performance
Low-cost, effortless daily maintenance

SOGA LUNA Series LED Stadium Flood Light | High Mast Sports Field Lighting - Seven

Extra Wireless Entertainment Function: Sync millions of dynamic color light effects with music beats, create immersive viewing experience for players and audiences.

Wide Application Scenarios

Football / Soccer Stadiums
Baseball & Softball Fields
Tennis Courts
All Types of Professional Sports Venues
Large outdoor high mast lighting projects
