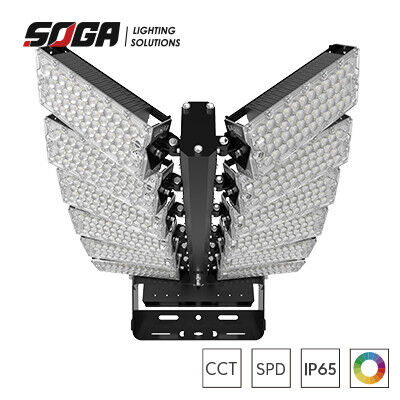

HAWK Series High Power LED Stadium Light

Detail Information

Product Description

Ratings & Reviews

Detail Information

Product Description

E-mail: seven@soga-lighting.com

HAWK series high mast LED flood light is a professional high-power modular lighting solution independently developed by SOGA LIGHTING, specially engineered for stadiums, ports, airports, large construction sites and other large-area outdoor lighting projects.

Equipped with vertically & horizontally rotatable LED modules, this light delivers ultra-uniform ground illumination with flexible light distribution. Adopting anodized aluminum light bars, stainless steel fasteners and powder-coated mounting brackets, the whole fixture features outstanding anti-corrosion performance without cracking or peeling. Rotation scale marks are printed on housing and LED modules for precise angle adjustment.

Fin-shaped heat sink realizes excellent heat dissipation to extend lamp service life. Modular split design simplifies assembly, maintenance and flexible power matching. Optional stainless steel mounting brackets are available for harsh coastal & high-wind environments.

Item	Details
Input Voltage	AC90-305V / AC108-528V
LED Chip	Lumileds 5050 high brightness LED
CRI	70 / 80 / 90 optional
CCT	3000K / 4000K / 5000K / 5700K / 6500K
Luminous Efficacy	145lm/w ~ 155lm/w
L70 Lifespan	≥60,000 hours
IP Rating	IP65 waterproof & dustproof
Operating Temperature	-40°C ~ +55°C
Power Factor	>0.95
Wind Resistance	Supports Class 17 wind load, wind speed 56.1~61.2m/s
Housing Material	Aluminum alloy; Iron / Stainless Steel bracket optional
Single Module Power	100W / 120W
Module Rotation Angle	Horizontal: 150° adjustable; Vertical: 360° full rotation
Beam Angle	20°, 40°, 60°, 90°, 140(H)*100(V)
Warranty	5 years global warranty

Driver & Dimming Control

Driver Brand: Meanwell / Sosen / Inventronics premium brand drivers
Dimming Options: 0-10V Dimming, DALI, CLO, Zigbee
Wireless Control System: 2.4G wireless intelligent control available
Detachable driver box with plug-and-play quick connection for easy installation & maintenance

HAWK Series High Power LED Stadium Light 2

Model	Module Quantity	Rated Power	Total Luminous Flux
SG-HK480W	4pcs	400W / 480W	60,000 ~ 72,000LM
SG-HK720W	6pcs	600W / 720W	90,000 ~ 108,000LM
SG-HK960W	8pcs	800W / 960W	120,000 ~ 144,000LM
SG-HK1200W	10pcs	1000W / 1200W	150,000 ~ 180,000LM
SG-HK1440W	12pcs	1200W / 1440W	180,000 ~ 216,000LM

Key Product Advantages

360° Vertical & 150° Horizontal Rotatable Modular Design

Every LED module supports free angle adjustment, achieving precise targeted lighting and flexible layout to eliminate dark zones on courts, yards and large venues. Clear angle scales on housing for accurate positioning.
Premium Lumileds 5050 LED & High Transmittance PC Cover

High-quality LED chips paired with high-transparent PC lens, high brightness, stable light output, anti-yellowing, long service life.
Fin-Type Lightweight Heat Sink, Excellent Heat Dissipation

Special fin heat sink structure accelerates air circulation to take away internal heat efficiently. Much lighter than traditional die-cast heat sinks, reduces overall lamp weight and installation cost.
Detachable Driver Box & Plug & Play Quick Connection

Drivers can be separately installed in pole-bottom electrical boxes via quick plug connectors. Greatly simplifies on-site wiring, installation and later maintenance without dismantling the whole lamp.
2.4G Full Wireless Intelligent Control System

All-in-one smart lighting solution for stadium projects:

Sync dynamic RGB color lighting effects with music beats
Control via mobile phone / PC wirelessly
Faster & smarter operation, low installation cost, stable long-term performance, easy maintenance

Heavy-Duty Weatherproof & Anti-Corrosion Structure

Anodized aluminum lamp body, stainless steel screws, powder-coated brackets, IP65 rating. Stainless steel bracket optional for coastal, salt fog, high humidity areas. Supports Class 17 super strong wind resistance.
Compact & Lightweight Structure, Lower Installation Cost

Modular combination design minimizes overall lamp size, lightweight design reduces load of light poles and mounting hardware, saving your total engineering budget.
Optional 20KV SPD Surge Protection

Built-in optional 20KV SPD protects the light from lightning surge damage, suitable for outdoor open areas with frequent thunderstorms.

Optional Accessories

Light Spill Cover
Laser Pen with Suction Mount Plate
20KV SPD Surge Protector
Zigbee Gateway
Zigbee Controller
Zigbee Wall Switch

Wide Application Scenarios

Sports Stadiums: Football fields, tennis courts, golf courses
Transportation Hubs: Airports, seaports, large outdoor parking lots
Construction & Industrial: Construction sites, large industrial yards, logistics parks

Packing Information

Single lamp packed per carton, export standard carton packaging:

Model	Carton Size	Net Weight	Gross Weight
SG-HK480W	814×776×212mm	23.5KG	27.5KG
SG-HK720W	958×776×212mm	27.6KG	31.6KG
SG-HK960W	1102×776×212mm	32.6KG	36.6KG
SG-HK1200W	1246×776×212mm	37.6KG	41.6KG
SG-HK1440W	1390×776×212mm	42.6KG	46.6KG

HAWK Series High Power LED Stadium Light 3
