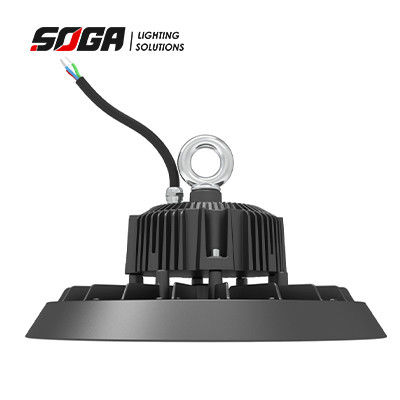

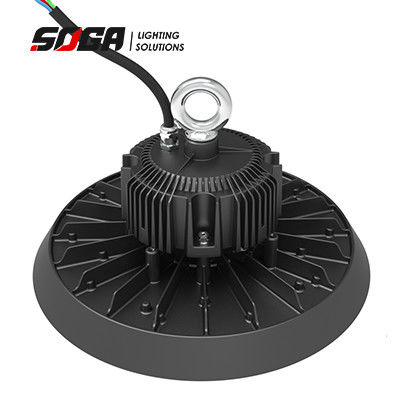

75w High Lumen UFO High Bay Light IP65 With Black Aluminum Housing

All Category

Tri Proof Led Light

Mrs. Danni

info@soga-lighting.com

+8613510247405

Contact Now

75w High Lumen UFO High Bay Light IP65 With Black Aluminum Housing

Brand Name:	SOGA
Model Number:	SG-UFO-200W
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS CE

Input Voltage:

AC90-305V/AC108-528V

Housing:

Aluminum

LED Brand:

LUMILEDS 5050

Sensor:

Motion Sensor; Daylight Sensor; 2in1 Sensor

70 80 90

Driver:

Meanwell,sosen

Supply Ability:

Highlight:

75w UFO High Bay Light

High Lumen UFO High Bay Light

High Lumen High Bay Light IP65

Product Description

UFO High Bay Light Motion Sensor UFO High Bay Light 75w With Black Aluminum Housing Case IP65

SOGA UFO series is a perfect choice for your industrial lighting projects with its closed design , smooth surface and rounded corners , which can significantly prevent the lamps from the dust accumulation and facilitate the cleaning.:

High lumen output - 180Lm/W, more energy saving

Smooth surface design, easy to clean and no dust accumulation

Powder-coated aluminum housing

Integrated motion sensor function for option.

IP65 (EN60529 compliant) rated to the luminaire.

Smart Wireless control

Free Dialux Simulations

Two easy installation ways - Bracket mounted or suspension mounted

SPECIFICTION

Input Voltage	AC90-305V/AC108-528V
Housing	Aluminum
LED Brand	LUMILEDS 5050
Sensor	Motion Sensor; Daylight Sensor; 2in1 Sensor
CRI	70 80 90
Driver	Meanwell,sosen
Operating Temp	-40°C to 55°C
Dimming Solutions	0-10v Dimming, DALI, CLO
Power Factor	＞0.95
CCT	3000K 4000K 5000K 5700K 6500K
Warranty	5 yrs warranty
Wireless Control	Available
IP Rate	IP65
Intallation	suspended; bracket mounted
L70 Hour	＞60,000 H
Beam Angle	60°,90°

MODEL	SG-UFO-100W	SG-UFO-150W	SG-UFO-200W
LM/W	165-170lm/w	165-170lm/w	165-170lm/w
POWER	100W	150W	200W
LUMEN OUTPUT	16500-17000lm	16500-17000lm	33000-34000lm

Different Installation ways

One lamp with 2 different installation ways – suspended or

bracket mounted to meet different installation application

75w High Lumen UFO High Bay Light IP65 With Black Aluminum Housing 0

Waterproof

IP65 waterproof

75w High Lumen UFO High Bay Light IP65 With Black Aluminum Housing 1

High Lumen Output

Using High efficiency Lumileds 5050 Chips

output efficiency 165-170lm/w at highest, much more energy saving.

75w High Lumen UFO High Bay Light IP65 With Black Aluminum Housing 2

FAQ:

Q1. What about the VS lead time ?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q2. Does VS have any MOQ limit for LED Lights order ?

A: Low MOQ, 1pc for sample checking is available.

Q3. How do you ship the goods and how long does it take to arrive ?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q4. How does VS proceed an order for LED Fin High Bay Lights ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

75w High Lumen UFO High Bay Light IP65 With Black Aluminum Housing 3
