| Brand Name: | SOGA |
| Model Number: | SG-G2-120W |
| Payment Terms: | L/C, T/T, Western Union |

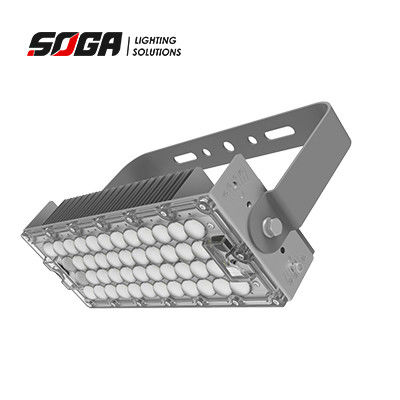

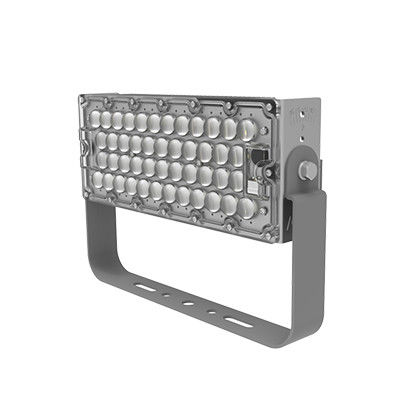

120W Rotatable LED Design Makes A More Flexible Lighting Distribution For Tennis Court
Rotatable LED bars make more flexible and efficient light distribution. Anodized aluminum bars, stainless steel screws and powder-coated holders. and bracket make the whole lamp anti-corrosive without cracking or peeling. Rotation degrees are marked on housing and LED bars Optional stainless steel installation bracket and holders. Finlike heatsink design provides perfect heat management and improves working lifetime. Modular design not only allows easy assembly and maintenance but also provides flexibility of power consumption.
SPECIFICATIONS
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| LED Brand | Lumileds 5050 |
| Bracket | iron or Stainless Steel |
| CRI | 70 80 90 |
| Driver | Meanwell, Sosen, Inventronics |
| Operating Temp | -40°C to 55°C |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-G2-120W | SG-G2-240W | SG-G2-360W | SG-G2-480W | SG-G2-720W | SG-G2-960W | SG-G2-1200W | SG-G2-1440W |
| MODEL QTY | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| POWER | 120W | 240W | 360W | 480W | 720W | 960W | 1200W | 1440W |
| LUMEN OUTPUT | 18000LM | 36000LM | 54000LM | 72000LM | 108000LM | 144000LM | 180000LM | 216000LM |
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
|
