Brand Name: | SOGA |
Model Number: | SG-BA-E300W |
Payment Terms: | L/C, T/T, Western Union |

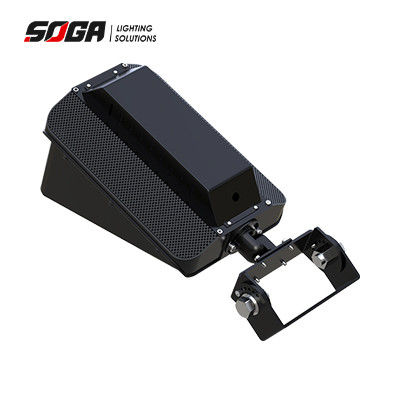

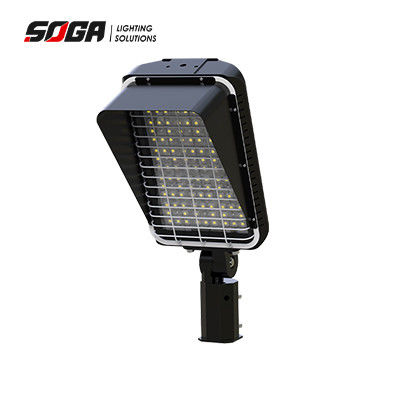

Sports Light With Dark Housing 300W High Efficiency 175lm/W Rotatable Modular 17 Class Wind Load IK08 CRI90 For Streets
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting etc
From 250W to 900W
Precise target lighting with the all-direction rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI>90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
SPECIFICATIONS
Input Voltage | AC90-305V/AC108-528V |
Housing | Aluminum |
Led Brand | Lumileds 5050 |
Rotatable Modular Design | Vertically 360°+horizontally180° |
CRI | 70 80 90 |
Wattage/module | 250 Or 300w |
Operating Temp | -40℃ To 55℃ |
Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
Power Factor | >0.95 |
Driver Box | Detachable SOGA Electrical box |
MODEL | SG-BA-E250W | SG-BA-E300W | SG-BA-E500W | SG-BA-E600W | SG-BA-E750W | SG-BA-E750W |
WATTAGE | 250W | 300W | 500W | 600W | 750W | 900W |
MODEL QTY | 1 | 1 | 2 | 2 | 3 | 3 |
WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W |
LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
LUMEN OUTPUT | 36250-43750LM | 43500-52500LM | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM |
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
