IP40 Commercial Industrial Linear Lighting 80W DALI Dimming For Machine Shops

IP40 Commercial Industrial Linear Lighting 80W DALI Dimming For Machine Shops

Brand Name: SOGA
Model Number: SG-LTR1500-W5-80W
Payment Terms: L/C, Western Union, T/T
Detail Information
Place of Origin:
China
Certification:
ROHS CE
CCT:
3000K 4000K 5000K 6000K
Lumen Efficiency:
160LM/W
Beam Angle:
30°,60°,90°,Single Deviation 40°, Double Asymmetrical25°
IP Rate:
IP40
Supply Ability:
1000
Highlight:

IP40 Industrial Linear Lighting

,

Industrial Linear Lighting 80W

,

Commercial Linear Lighting

Product Description

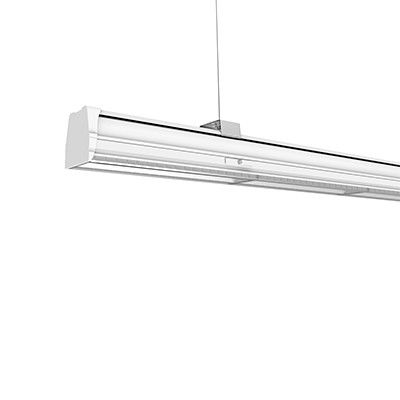

Industrial Linear Lighting Length 1418cm DALI Dimming 80W 160lm/W For Machine Shops



SG-LTR1500-W7-80W Linear Lighting System is an energy-efficient, low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations due to its low installation cost everything in one box and installation is tool-less. It saves both time and costs when installing lighting systems. .Cost-effective light-line solution for industrial, commercial and other applications .Good quality of light with high lumen output to meet different requirements .Easy to install, reducing time, labor, packaging waste and complexity .Flexible installation solutions



SPECIFICTION



Model SG-LTR1500-W5-80W
Power 80W
CCT 3000K 4000K 5000K 6000K
Lumen Efficiency 160LM/W
Beam Angle 30°,60°,90°,Single deviation 40°, Double Asymmetrical25°
IP Rate IP40

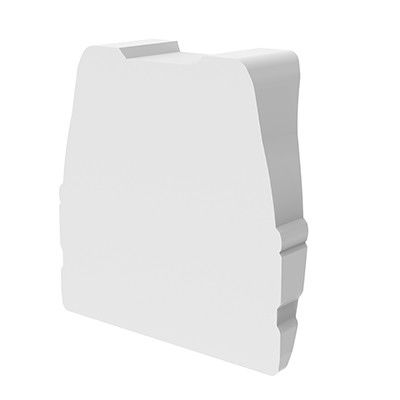

Optional Accessories End CapFeed In BoxFeed In ConnectorSuspension AccessoryBlank Cover L Node ConnectorT Node ConnectorX Node Connector
length 1437x68x70mm
Dimming Solutions Dimming(DALI / 1-10V)Emergency (Battery/UPS system) Sensor Function(Microwave/Daylight)





MODEL SG-TRPF-60-25W SG-TRPF-90-30W SG-TRPF-120-35W SG-TRPF-135-40W SG-TRPF-150-45W SG-TRPF-180-60W
LENGTH 60CM 90CM 120CM 135CM 150CM 180CM
POWER 25W 30W 35W 40W 45W 60W
LUMEN OUTPUT 4250LM 5100LM 5950LM 6800LM 7650LM 10200LM

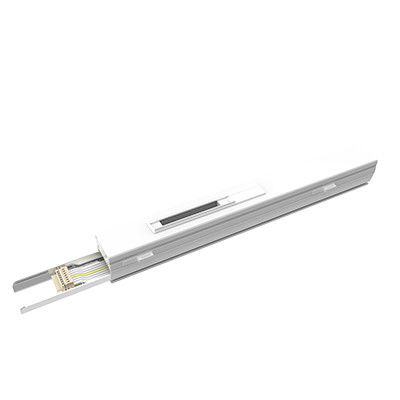

TRUNKING RAIL

• 3-phase pre-selection via moving luminaire male connector pin to right or left to installation in rail • Trunking rail as standard with 5, 7 or core through-wiring with 2.5mm2cable for power supply and 1.5mm2 cable for dimming control. • Separate power supplies, dimming or emergency supply can be integrated • Electrical feed possible in sideward or end area of a trunking rail arrangement via special trunking rail element • Trunking rail modules with pre-assembled connectors • Wide distances between suspension points to 3m with self-supporting connector elements • Simple mounting of trunking rail elements with pre-assembled connectors with integral plug-in system (electrical and mechanical connection)



EMERGENCY LIGHTING FUNCTION

Optional interagted 6W or 12W emergency kits can be applied, which can makes the lamps work for 3 hour under emergency lighting model 6Woutput+2000mAh Battery(3H) 12W output+4000mAh Battery



MULTI-SENSOR SYSTEM

Efficient tools for lighting are the basis for solutions with low operating overheads and high quality of light. Supplemented with suitable light control, savings potential can be further significantly increased. The right type of light management depends decisively on the specific building conditions and usage of the area.With a wide variety of dimming light control systems with suitable sensor technology, and thanks to open, non-proprietary standards, such solutions can be simply integrated into common building management systems. Dimming system is suitable for complex applications for controlling rooms and storey; for daylight-dependent control and dynamic light control



IP40 Commercial Industrial Linear Lighting 80W DALI Dimming For Machine Shops 0
