| Brand Name: | SOGA |
| Model Number: | SG-LTR1200-W5-24W |
| Payment Terms: | L/C, Western Union, T/T |

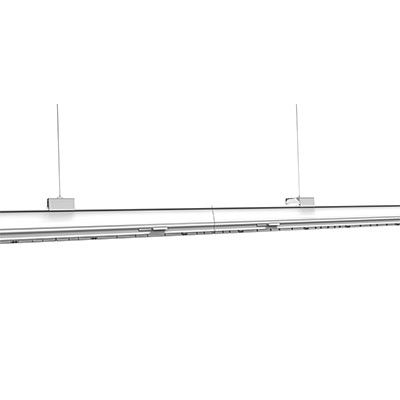

Industrial Linear Lighting Outdoor Easy to instal Flexible installation solutions 24W 570mm
SG-LTR1500-W7-80W Linear Lighting System is an energy-efficient, low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations due to its low installation cost everything in one box and installation is tool-less. It saves both time and costs when installing lighting systems. .Cost-effective light-line solution for industrial, commercial and other applications .Good quality of light with high lumen output to meet different requirements .Easy to install, reducing time, labor, packaging waste and complexity .Flexible installation solutions
SPECIFICTION
| Model | SG-LTR1200-W5-24W |
| Power | 24W |
| CCT | 3000K 4000K 5000K 6000K |
| Lumen Efficiency | 160LM/W |
| Beam Angle | 30°,60°,90°,Single deviation 40°, Double Asymmetrical25° |
| IP Rate | IP40 |
| Optional Accessories | End CapFeed In BoxFeed In ConnectorSuspension AccessoryBlank Cover L Node ConnectorT Node ConnectorX Node Connector |
| length | 1437x68x70mm |
| Dimming Solutions | Dimming(DALI / 1-10V)Emergency (Battery/UPS system) Sensor Function(Microwave/Daylight) |

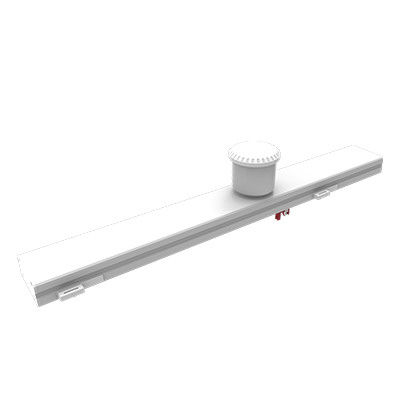

TRUNKING RAIL
• 3-phase pre-selection via moving luminaire male connector pin to right or left to installation in rail • Trunking rail as standard with 5, 7 or core through-wiring with 2.5mm2cable for power supply and 1.5mm2 cable for dimming control. • Separate power supplies, dimming or emergency supply can be integrated • Electrical feed possible in sideward or end area of a trunking rail arrangement via special trunking rail element • Trunking rail modules with pre-assembled connectors • Wide distances between suspension points to 3m with self-supporting connector elements • Simple mounting of trunking rail elements with pre-assembled connectors with integral plug-in system (electrical and mechanical connection)
EMERGENCY LIGHTING FUNCTION
Optional interagted 6W or 12W emergency kits can be applied, which can makes the lamps work for 3 hour under emergency lighting model 6Woutput+2000mAh Battery(3H) 12W output+4000mAh Battery
MULTI-SENSOR SYSTEM
Efficient tools for lighting are the basis for solutions with low operating overheads and high quality of light. Supplemented with suitable light control, savings potential can be further significantly increased. The right type of light management depends decisively on the specific building conditions and usage of the area.With a wide variety of dimming light control systems with suitable sensor technology, and thanks to open, non-proprietary standards, such solutions can be simply integrated into common building management systems. Dimming system is suitable for complex applications for controlling rooms and storey; for daylight-dependent control and dynamic light control
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
|
