| Brand Name: | SOGA |
| Model Number: | SG-BA-E900W |
| Payment Terms: | L/C, T/T, Western Union |

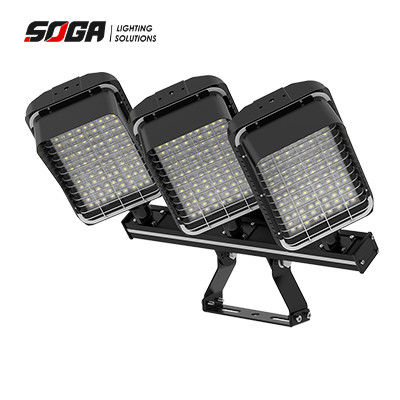

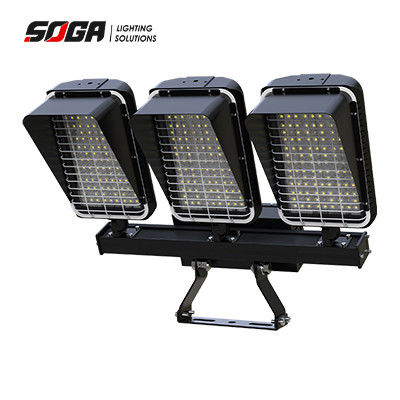

Outdoor Light 900W High Efficiency 175lm/W LED5050 Rotatable Modular Detachable Driver Box IK08 CRI90 For Tennis Court
SPECIFICATIONS
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting etc
| CCT | 3000k 4000k 5000k 5700k 6500k |
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| MODEL | SG-BA-E250W | SG-BA-E300W | SG-BA-E500W | SG-BA-E600W | SG-BA-E750W | SG-BA-E750W |
| WATTAGE | 250W | 300W | 500W | 600W | 750W | 900W |
| MODEL QTY | 1 | 1 | 2 | 2 | 3 | 3 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 36250-43750LM | 43500-52500LM | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM |
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
