| Brand Name: | SOGA |
| Model Number: | SG-BA-E250W |
| Payment Terms: | L/C, T/T, Western Union |

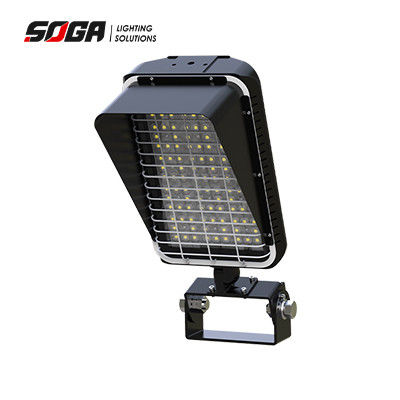

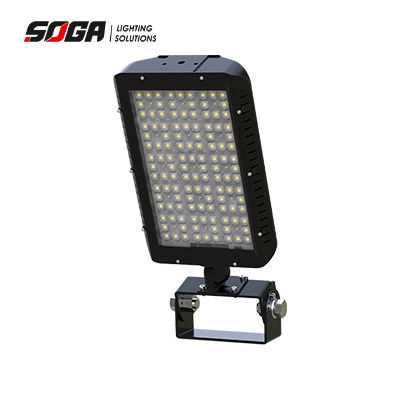

Outdoor Light 300W High Efficiency 175lm/W LED5050 Rotatable Modular Detachable Driver Box IK08 CRI90
SPECIFICATIONS
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting etc
| CCT | 3000k 4000k 5000k 5700k 6500k |
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| MODEL | SG-BA-E250W | SG-BA-E300W | SG-BA-E500W | SG-BA-E600W | SG-BA-E750W | SG-BA-E750W |
| WATTAGE | 250W | 300W | 500W | 600W | 750W | 900W |
| MODEL QTY | 1 | 1 | 2 | 2 | 3 | 3 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 36250-43750LM | 43500-52500LM | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM |
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
