| Brand Name: | SOGA |
| Model Number: | SG-BA-Y1500W |
| Payment Terms: | L/C, T/T, Western Union |

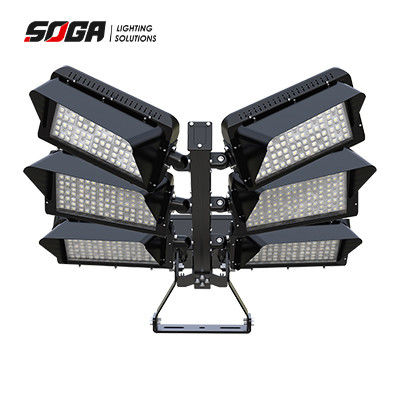

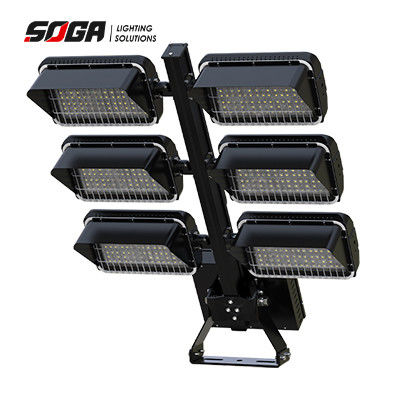

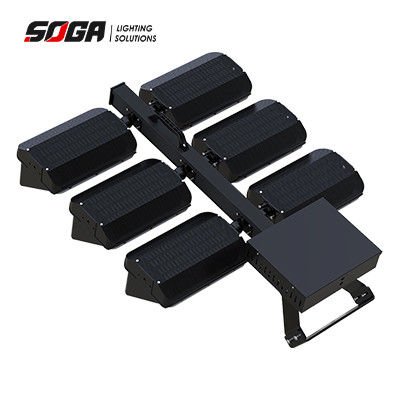

Outdoor Light With Dark Housing 1500W LED5050 Rotatable Modular 17 Class Wind Load Aluminum & Stainless Steel
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting etc
SPECIFICATIONS
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 360°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| Operating Temp | -40℃ To 55℃ |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | SG-BA-Y1000W | SG-BA-Y1200W | SG-BA-Y1500W | SG-BA-Y1800W |
| WATTAGE | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 4 | 4/5 | 5/6 | 6 |
| WATTAGE/MODULE | 250W | 250 OR 300W | 250 OR 300W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
