| Brand Name: | SOGA |
| Model Number: | SG-JR-1500W |
| Payment Terms: | L/C, T/T, Western Union |

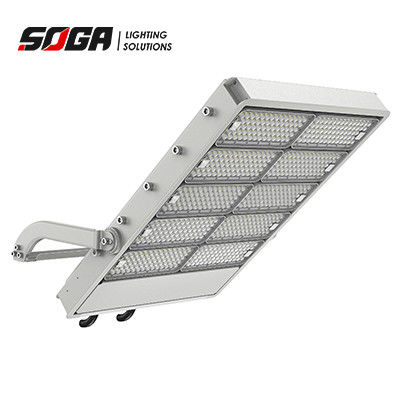

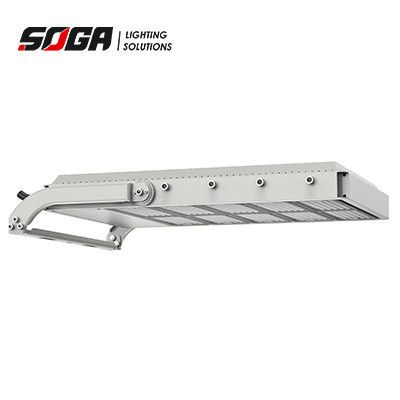

LED Lighting Fixture DMX Amusement Function Anti-Glare And Obtrusive Light Control Outdoor Basketball Court
Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
INTRODUCTION
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Aluminum | Lumileds 5050 |
| Rotatable Modular Design | Horizontally15° |
| CRI | 70 80 90 |
| Wattage/Module | 150W |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10V Dimming, DALI, DMX, clo, Zigbee |
| Power Factor | Power Factor |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
|
WATTAGE Symmetrica |
150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
|
MODEL QTY
|
1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
|
LUMEN EFFICIENCY Symmetric |
170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
|
