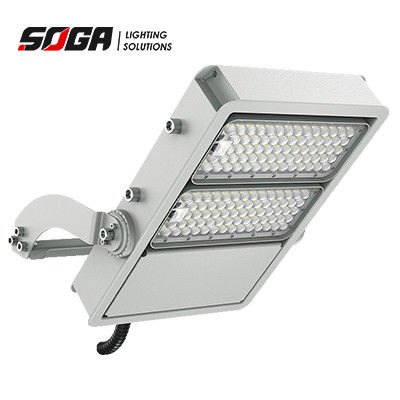

IK08 900W Glare Free LED Flood Light 0-10V Dimming Horizontally Rotatable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xL70 Hour | >100.000h | Optional Accessories | SPD, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch |
---|---|---|---|
Windload Test | 17 Class Windload(56.1-61.2m/s, 240kg/square Meter) | IK Rate | IK09 |
Bracket | Stainless Steel | Driver | INVENTRONICS, MEANWELL, SOSEN |
High Light | 900W Glare Free LED Flood Light,Glare Free LED Flood Light Dimming,900W LED Flood Light |
0-10V Dimming SOGA Patent 900W Sports Lighting Glare Free LED Flood Light
Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
- Patent SOGA Streamlined Design
- High-quality Die-casting aluminium housing
- Vertically and Horizontally Adjustable Modular Design
- Smaller Size and Lighter Weight

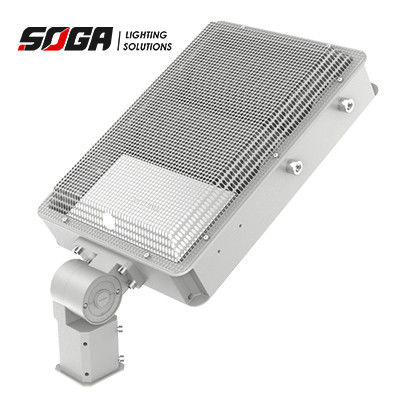

- Anti-Glare & Obtrusive Light Control
- Easy Aiming Check One-size Screws for all adjustment
- Tool-free driver box
- Quick Connected Electrical Box
- Wireless Smart Control
- Wireless or DMX Entertainment System
INTRODUCTION
Input Voltage | AC90-305V/AC108-528V |
Housing | Aluminum |
Aluminum | Lumileds 5050 |
Rotatable Modular Design | Horizontally15° |
CRI | 70 80 90 |
Wattage/Module | 150W |
Operating Temp | -40℃ To 55℃ |
Dimming Solutions | 0-10V Dimming, DALI, DMX, clo, Zigbee |
Power Factor | Power Factor |
CCT | 3000K 4000K 5000K 5700K 6500K |
MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
WATTAGE Symmetrica |
150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
MODEL QTY
|
1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
LUMEN EFFICIENCY Symmetric |
170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |
