| Brand Name: | SOGA |
| Model Number: | SG-JR-150W |
| Payment Terms: | L/C, T/T, Western Union |

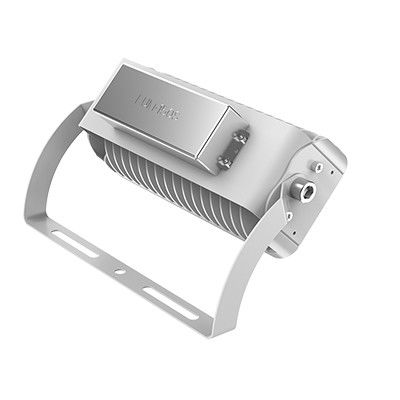

0°Tilt Installed Sports Lights Rotatable Module Tennis Court Glare Free LED Flood Light
Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
INTRODUCTION
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Aluminum | Lumileds 5050 |
| Rotatable Modular Design | Horizontally15° |
| CRI | 70 80 90 |
| Wattage/Module | 150W |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10V Dimming, DALI, DMX, clo, Zigbee |
| Power Factor | Power Factor |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
|
WATTAGE Symmetrica |
150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
|
MODEL QTY
|
1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
|
LUMEN EFFICIENCY Symmetric |
170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
|
