| Brand Name: | SOGA |
| Model Number: | SG-DPH-200W |
| Payment Terms: | L/C, T/T, Western Union |

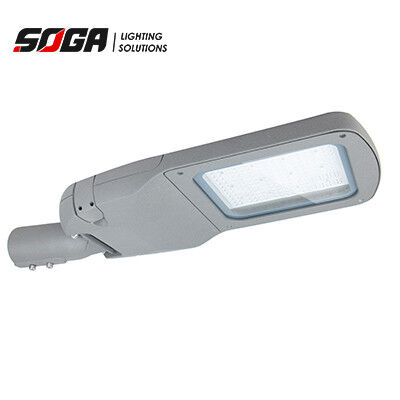

Bridge 3000K LED Street Light Outdoor 200W Optional Photocell Daylight Sensor Waterproof Street Light
SPECIFICATIONS
DELPHINUS Series is the best alternative for traditional street and area lighting with quick payback, improved performance and preventing light pollution. This fixture is easy in installation, from 50 wattage to 200 wattage and also with other competitive features as below:
Powder-coated aluminum housing
Tool free access to LED driver
Protection switch connector
IP65 (EN60529 compliant) rated water-proof
Optional photocell daylight sensor
Smart Wireless control
Free Dialux Simulations
| MODEL | SG-DPH-50W | SG-DPH-70W | SG-DPH-100W | SG-DPH-120W | SG-DPH-150W | SG-DPH-200W |
| MODEL QTY | 1 | 1 | 1 | 1 | 1 | 1 |
| POWER | 50W | 70W | 100W | 120W | 150W | 200W |
| LUMEN OUTPUT | 6500LM | 9100LM | 13000LM | 14400LM | 19500LM | 26000LM |
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| LED Brand | Lumileds 3030 |
| L70 Hour | ＞60,000 H |
| CRI | 70 80 90 |
| Driver | Meanwell, Sosen, Inventronics |
| Operating Temp | -40°C to 55°C |
| Dimming Solutions | Dimming Solutions |
| Power Factor | ＞0.95 |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| Warranty | 5 yrs warranty |
| Wireless Control | Available |
| IP Rate | IP65 |
| Surge Protection | 10kv |
| Beam Angle | 155°*80° |
| Sensor | Motion Sensor；dayight Sensor；Zigbee Techonology |
Too-Free Maintenance
Driver box can be tool-free opened by the electrician for the maintenance
6063 Die Casting Aluminum Housing
Durable and stable in rugged environment
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
|
