| Brand Name: | SOGA |
| Model Number: | SG-JR-1200W |
| Payment Terms: | L/C, T/T, Western Union |

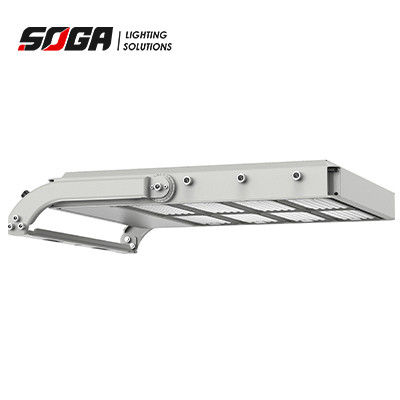

SOGA Patent Outdoor LED Sports DMX Control RGB Lighting Basketball Court LED High Mast Light
SPECIFICATIONS
Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W |
| Bracket | Stainless steel |
| Driver | INVENTRONICS, MEANWELL, SOSEN |
| IK Rate | IK09 |
| Windload Test | 17 class windload(56.1-61.2m/s, 240kg/square meter) |
| L70 Hour | ＞100.000h |
| Optional Accessories | SPD, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch |
| MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
|
WATTAGE Symmetrica |
150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
|
MODEL QTY
|
1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
|
LUMEN EFFICIENCY Symmetric |
170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |

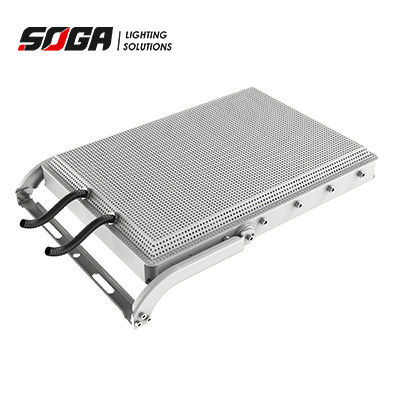

High-quality Die-casting aluminium housing
- higher IK (Impact Protection) rating approved
- high-performance thermal management ensures the stability of the lighting fixture.
Wireless or DMX Entertainment System
SOGA Wireless or DMX Entertainment System is designed to provide an amazing audio and visual experience to all players and fans. Millions of different colors changing effects synchronized to music beats can be simply wirelessly set up on your phone or PC or by your existing DMX system. Whether it’s player introductions, big plays, halftime shows, or post-game celebrations, SOGA Entertainment system will be an excellent option to help create an unforgettable stadium experience.
Vertically Adjustable Modular Design
- Each module is rotatable vertically 15 °
therefore a more precise and uniform lighting effect will be delivered on
all different lighting area. Most uniformity rate we get with our Jaguar
series lamps are more than 0.7
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
|
