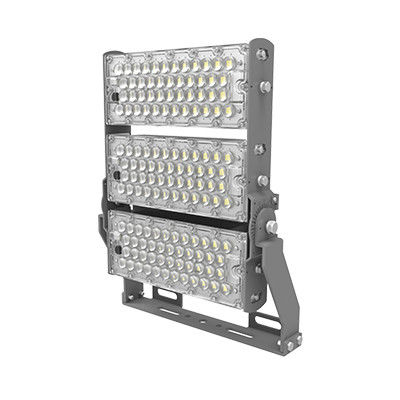

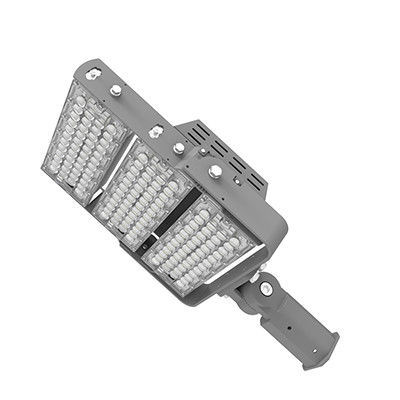

Outdoor LED Stadium Lights 360w Floodlights 5 Years Warranty Aluminum Housing Meanwell Sosen Driver
SPECIFICATIONS
From 100W to 1440W
Light weight with fin-style Aluminum heatsink
Multifunctional lighting application
Different brackets for different installation ways (such as poles or wall mounted)
More uniform lighting with the rotatable modular design
Glare Control with light spill cover
Free Dialux Simulations
Smart Wireless Control
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| LED Brand | Lumileds 5050 |
| Bracket | iron or Stainless Steel |
| CRI | 70 80 90 |
| Driver | Meanwell, Sosen, Inventronics |
| Operating Temp | -40°C to 55°C |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-G2-120W | SG-G2-240W | SG-G2-360W | SG-G2-480W | SG-G2-720W | SG-G2-960W | SG-G2-1200W | SG-G2-1440W |
| MODEL QTY | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| POWER | 120W | 240W | 360W | 480W | 720W | 960W | 1200W | 1440W |
| LUMEN OUTPUT | 18000LM | 36000LM | 54000LM | 72000LM | 108000LM | 144000LM | 180000LM | 216000LM |
Folded Finned Style Heatsink
Great performance on heat dissipation.
The air going through will bring the heat out easily,
ensure the long lifespan of the light fixture.
17 Grade Windload Resistant
IP65 Ingress Protection
10KV Surge Protection
