| Brand Name: | SOGA |
| Model Number: | BA-H600W |
| Payment Terms: | L/C, T/T, Western Union |

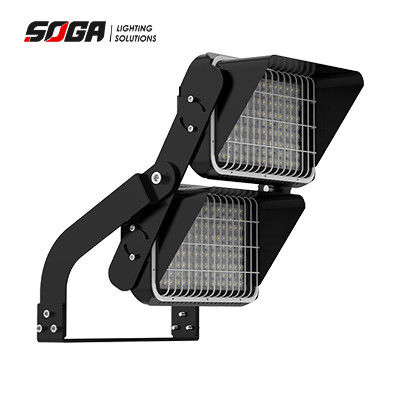

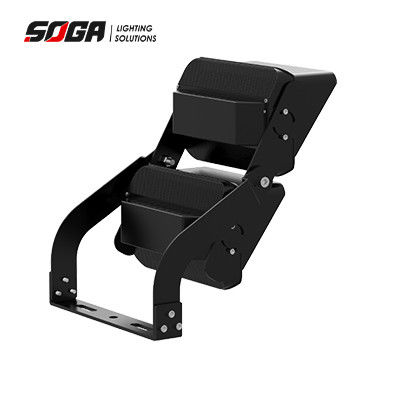

Outdoor LED Stadium Lights Rugged Weather-Tight Design High Transparency Floodlight
SPECIFICATIONS
Compare with Barrett E and Y series, H series are with even wider range of applications. Except the sports lighting application, it is also the perfect option for Construction site, Airport, Seaport, Public Square etc.
From 500W to 1800W
Precise target lighting with the rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI＞90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically Rotatable Modules |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| 250 Or 300w | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
