| Brand Name: | SOGA |
| Model Number: | BA-H1500W |
| Payment Terms: | L/C, T/T, Western Union |

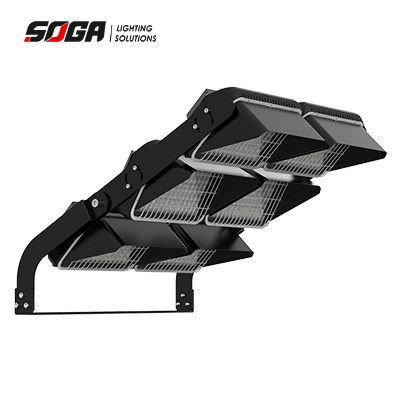

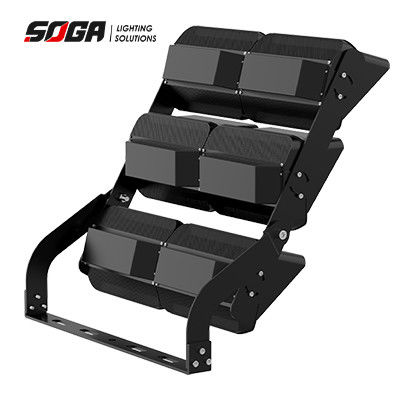

Asymmetric Glare Flexible Precise Target LED Sports Lighting Glare Free LED Flood Light
SPECIFICATIONS
Barrett H V2.0 Asymmetric version, which is specially designed for those high-end market which have strict standards on obtrusive light control on sports lighting. With our real asymmetric design, this series can be installed horizontally with less than 10°elevation angle. Can pass the most strict AS/NZS 4282:2019 and EN12193: 2018. Your professional choice for your sports lighting projects in high residential area.
Perfect obtrusive light control
High lighting uniformity
Triple protection from bird harms and rugged weather
Smart wireless control system
RGBW amusement lighting function
Detachable driver box
10KV surge protection
Stand 17grade windload
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically Rotatable Modules |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| 250 Or 300w | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
17 Grade Windload Resistant
IP66 Ingress Protection
10KV Surge Protection
Stainless Steel Conduit
Protect the cable from any potential damage ,
like bird, rugged weather etc.
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
