| Brand Name: | SOGA |
| Model Number: | BA-H1000W |
| Payment Terms: | L/C, T/T, Western Union |

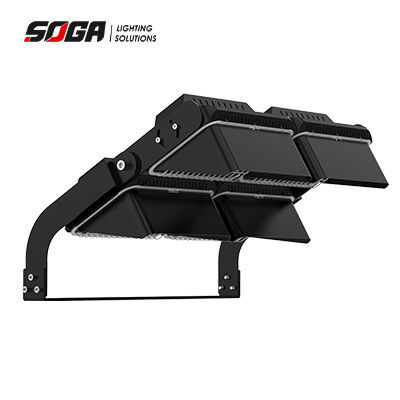

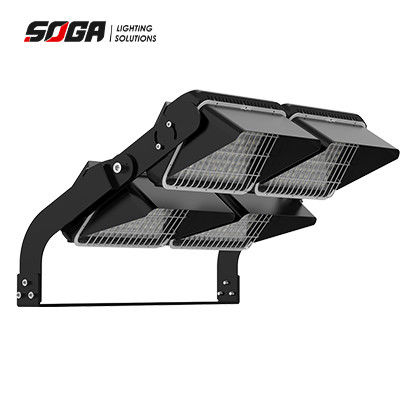

Glare Free LED Flood Light Asymmetric Glare Flexible Precise Target LED Sports Lighting
SPECIFICATIONS
Barrett H V2.0 Asymmetric version, which is specially designed for those high-end market which have strict standards on obtrusive light control on sports lighting. With our real asymmetric design, this series can be installed horizontally with less than 10°elevation angle. Can pass the most strict AS/NZS 4282:2019 and EN12193: 2018. Your professional choice for your sports lighting projects in high residential area.
Perfect obtrusive light control
High lighting uniformity
Triple protection from bird harms and rugged weather
Smart wireless control system
RGBW amusement lighting function
Detachable driver box
10KV surge protection
Stand 17grade windload
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically Rotatable Modules |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| 250 Or 300w | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Smart Wireless Control System
Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.
High-definition Broadcasting Standard
High TLCI solution can be offered to meet
high-level broadcasting sports event.
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
