| Brand Name: | SOGA |
| Model Number: | BA-H500W |
| Payment Terms: | L/C, T/T, Western Union |

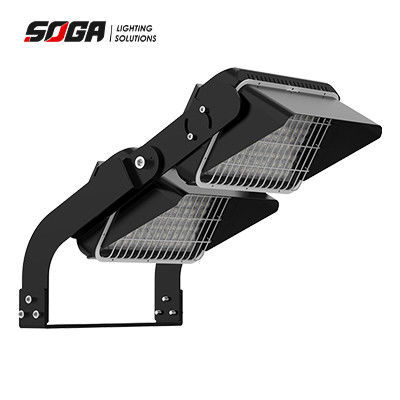

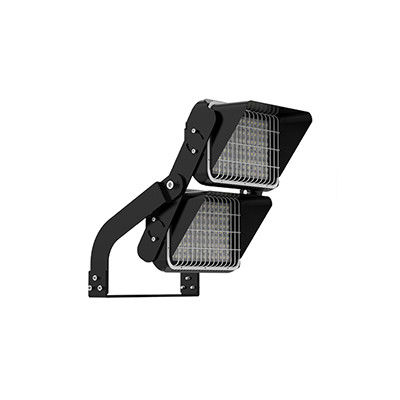

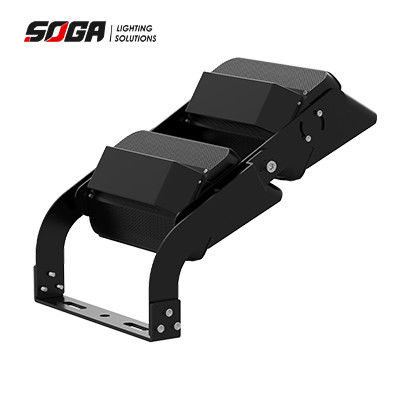

Glare Free LED Flood Light Minimum Spill Light Vertical Horizontal LED Outdoor Sports Lighting
SPECIFICATIONS
Barrett H V2.0 Asymmetric version, which is specially designed for those high-end market which have strict standards on obtrusive light control on sports lighting. With our real asymmetric design, this series can be installed horizontally with less than 10°elevation angle. Can pass the most strict AS/NZS 4282:2019 and EN12193: 2018. Your professional choice for your sports lighting projects in high residential area.
Perfect obtrusive light control
High lighting uniformity
Triple protection from bird harms and rugged weather
Smart wireless control system
RGBW amusement lighting function
Detachable driver box
10KV surge protection
Stand 17grade windload
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically Rotatable Modules |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| 250 Or 300w | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Detached Driver Box and Plug and Play Connecting Cable
Can always put the driver on the bottom of
pole with SOGA quick connection cable
Light Spill Cover +Light Spill Mesh
Reduce the light pollution and glare. Meanwhile a safer lighting solution
keeps you away from neighbor’s complaint
DMX Amusement Function
Bring all audience an amazing colorful lighting effect
before the match begin. One lamp is enough for the
amusement and functional lighting.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
