| Brand Name: | SOGA |
| Model Number: | SG-EG-1080W |
| Payment Terms: | L/C, T/T, Western Union |

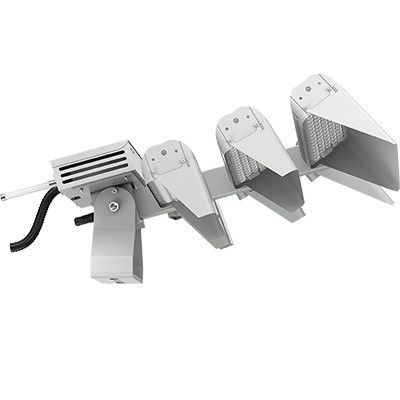

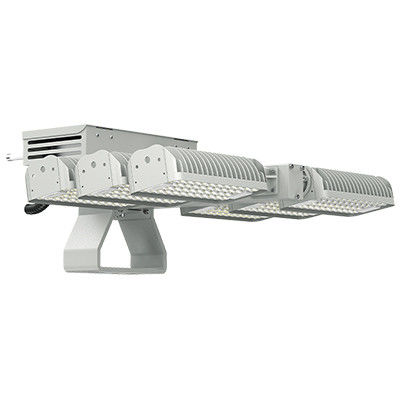

Glare Free LED Flood Light LED Flood Lights 0-10V Dimming Aluminum Bracket Golf Court
SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:
Patent SOGA Streamlined Design
High-quality Die-casting aluminium housing
Vertically and Horizontally Adjustable Modular Design
Smaller Size and Lighter Weight
Anti-Glare & Obtrusive Light Control
Easy Aiming Check One-size Screws for all adjustment
Tool-free driver box
Quick Connected Electrical Box
Wireless Smart Control
Wireless or DMX Entertainment System
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP Rate |
| Beam Angle | 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W |
| Bracket | Aluminum |
| Driver | INVENTRONICS, MEANWELL, SOSEN |
| IK Rate | IK09 |
| Windload Test | 17 class windload(56.1-61.2m/s, 240kg/square meter) |
| Optional Accessories | Spill Cover, Angle Rubler Sight, SPD, Seperated Driver Box, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch |
| L70 Hour | ＞100.000h |
| MODEL | SG-EG-720W | SG-EG-1080W | SG-EG-1440W | SG-EG-1800W |
| WATTAGE | 720W | 1080W | 1440W | 1800W |
| MODEL QTY | 4 | 6 | 8 | 10 |
| LUMEN EFFICIENCY | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 122400LM | 183600LM | 244800LM | 306000LM |
High-quality Die-casting aluminium housing
- higher IK (Impact Protection) rating approved
- high-performance thermal management ensures the stability of the lighting fixture.
Smaller Size and Lighter Weight
Each module is 150w but with only 286*124*74.5MM
and 1174g . best option for retrofits,
new installations, and maintanence.
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
