Module Rotatable Indoor Volleyball Court Lighting LED Sports Field

Place of Origin China
Brand Name SOGA
Certification ROHS CE IP65
Model Number SG-EG-1500W
Delivery Time 15
Payment Terms L/C, T/T, Western Union
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wattage/Module Symmetrical:180W Asymmetrical:150W Driver INVENTRONICS, MEANWELL, SOSEN
Warranty 5 Yrs Warranty Bracket Aluminum
Windload Test 17 Class Windload(56.1-61.2m/s, 240kg/square Meter) IK Rate IK09
Optional Accessories Spill Cover, Angle Rubler Sight, SPD, Seperated Driver Box L70 Hour >100.000h
High Light

Rotatable Indoor Volleyball Court Lighting

,

Indoor Volleyball Court Lighting LED

,

Rotatable Volleyball Court Lighting

Leave a Message
Product Description

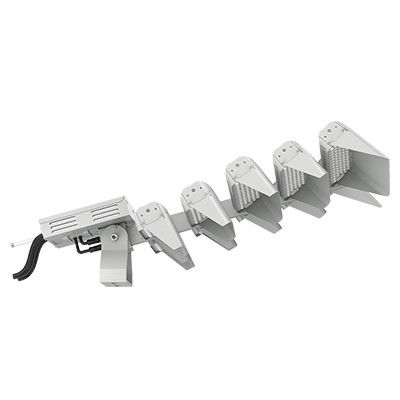

SOGA Patent Rotatable Module With Detachable Driver Kits LED Sports Light Volleyball Court Indoor



SPECIFICATIONS

Patented EAGLE series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system



Power Factor >0.95
CCT 3000K 4000K 5000K 5700K 6500K
Warranty 5 Yrs Warranty
Wireless Control Available
IP Rate IP66
Beam Angle 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W





MODEL SG-EG-720W SG-EG-1080W SG-EG-1440W SG-EG-1800W
WATTAGE 720W 1080W 1440W 1800W
MODEL QTY 4 6 8 10
LUMEN EFFICIENCY 170LM/W 170LM/W 170LM/W 170LM/W
LUMEN OUTPUT 122400LM 183600LM 244800LM 306000LM





High-quality Die-casting aluminium housing

- higher IK (Impact Protection) rating approved

- high-performance thermal management ensures the stability of the lighting fixture.

Module Rotatable Indoor Volleyball Court Lighting LED Sports Field 0



One-size Screws for all adjustment

SOGA takes all tiny details in consideration when do the product design. To bring installer more convenient installing experience, we use one-size screws for the modules adjustment, one simple L screw driver is enough to adjust the modules from left to right, up to down.

Module Rotatable Indoor Volleyball Court Lighting LED Sports Field 1



Vertically and Horizontally Adjustable Modular Design

- Each module is rotatable vertically 80 °, and horizontally 180 ° ,

therefore a more precise and uniform lighting effect will be delivered on

all different lighting area. Most uniformity rate we get with our Eagle

series lamps are more than 0.7

Module Rotatable Indoor Volleyball Court Lighting LED Sports Field 2

Scope of application

the product is widely used in Automotive industry control,new energy industry,Audio,Home appliances equipment,Communication industry.it can meet the diverse needs of customers



Module Rotatable Indoor Volleyball Court Lighting LED Sports Field 3
