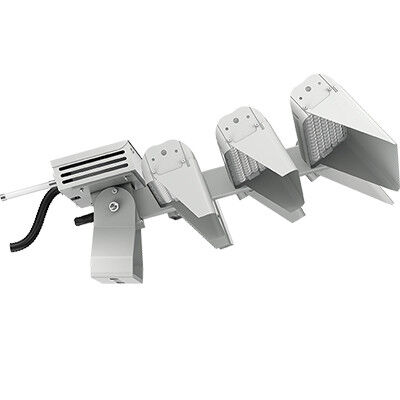

10KV Parking Lot LED Light DMX Control RGB Sports Field Flood Lights

Place of Origin China
Brand Name SOGA
Certification ROHS CE IK08 IP65
Model Number SG-EG-900W
Delivery Time 15
Payment Terms L/C, T/T, Western Union
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wattage/Module Symmetrical:180W Asymmetrical:150W Driver INVENTRONICS, MEANWELL, SOSEN
Warranty 5 Yrs Warranty Bracket Aluminum
Windload Test 17 Class Windload(56.1-61.2m/s, 240kg/square Meter) IK Rate IK09
Optional Accessories Spill Cover, Angle Rubler Sight, SPD, Seperated Driver Box L70 Hour >100.000h
High Light

10KV Parking Lot LED Light

,

Parking Lot LED Light DMX Control

,

RGB Sports Field Flood Lights

Leave a Message
Product Description

LED Sports Field Lights Easy Installation LED Flood Lights DMX Control RGB Lighting Ourdoor Parking Lot



SPECIFICATIONS

Patented EAGLE series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system



Power Factor >0.95
CCT 3000K 4000K 5000K 5700K 6500K
Warranty 5 Yrs Warranty
Wireless Control Available
IP Rate IP66
Beam Angle 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W



MODEL SG-EG-720W SG-EG-1080W SG-EG-1440W SG-EG-1800W
WATTAGE 720W 1080W 1440W 1800W
MODEL QTY 4 6 8 10
LUMEN EFFICIENCY 170LM/W 170LM/W 170LM/W 170LM/W
LUMEN OUTPUT 122400LM 183600LM 244800LM 306000LM



Easy Aiming Check

SOGA Angle Ruler Sight & aiming lines which are engraved in the modules, helps double check both the asymmetric and symmetric modules aiming to the correct points on the sports fields, installers no need to hold any extra aiming device on hand anymore .

10KV Parking Lot LED Light DMX Control RGB Sports Field Flood Lights 0



Wireless or DMX Entertainment System

SOGA Wireless or DMX Entertainment System is designed to provide an amazing audio and visual experience to all players and fans. Millions of different colors changing effects synchronized to music beats can be simply wirelessly set up on your phone or PC or by your existing DMX system. Whether it’s player introductions, big plays, halftime shows, or post-game celebrations, SOGA Entertainment system will be an excellent option to help create an unforgettable stadium experience.

10KV Parking Lot LED Light DMX Control RGB Sports Field Flood Lights 1



IP66 Ingress Protection

17 Grade windload Resistant

10KV Surge Protection

10KV Parking Lot LED Light DMX Control RGB Sports Field Flood Lights 2
