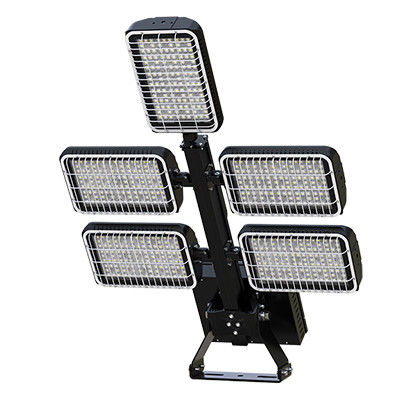

175lm/W 1500W LED Sports Field Lights High Efficiency Rotatable Modular

Place of Origin China
Brand Name SOGA
Certification ROHS CE IP65
Model Number SG-BA-Y1500W
Delivery Time 15
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wattage/module 250 Or 300w Optional Accessories Optional Accessories
Bracket Stainless Steel Driver Meanwell, Sosen, Inventronics
IK Rate IK08 Windload Test 17class Windload(56.1-61.2m/s, 240kg/square Meter)
L70 Hour >60.000h Driver Box Detachable SOGA Electrical Box
High Light

175lm/W LED Sports Field Lights

,

1500W LED Sports Field Lights

,

1500W Sports Lights

Leave a Message
Product Description

Outdoor Light 1500W High Efficiency 175lm/W LED5050 Rotatable Modular Detachable Driver Box IK08 CRI90 For Tunnels



SPECIFICATIONS

SOGA patent design under the inspiration of Barrett rifle. Which is similar as the rifle, Precise targeting is the most outstanding feature of SOGA Barrett Series Sports lights, and also with other competitive features as below:

Precise target lighting with the all-direction rotatable modular design

Glare Control with light spill cover

Class 17 wind load resistance

Free Dialux Simulation

Broadcast standard TLCI>90

No exposed electric wire

Wireless Control

Detachable driver box

Quick connection plug



Dimming Solutions 0-10v Dimming,dali,clo,Zigbee Technology
Power Factor >0.95
CCT 3000k 4000k 5000k 5700k 6500k
Warranty 5 Yrs Warranty
Wireless Contro Available
IP Rate IK08
Driver Meanwell, Sosen, Inventronics
L70 Hour >60.000h



MODEL SG-BA-Y1000W SG-BA-Y1200W SG-BA-Y1500W SG-BA-Y1800W
WATTAGE 1000W 1200W 1500W 1800W
MODEL QTY 4 4/5 5/6 6
WATTAGE/MODULE 250W 250 OR 300W 250 OR 300W 300W
LUMEN EFFICIENCY 145-175LM/W 145-175LM/W 145-175LM/W 145-175LM/W
LUMEN OUTPUT 145000-175000LM 174000-210000LM 217500-262500LM 261000-315000LM





High-Definition Broadcasting Standard

High TLCI solution can be offered to meet

high-level broadcasting sports event.

175lm/W 1500W LED Sports Field Lights High Efficiency Rotatable Modular 0



DMX Amusement Function

Bring all audience an amazing colorful lighting effect

before the match begin. One lamp is enough for the

amusement and functional lighting.

175lm/W 1500W LED Sports Field Lights High Efficiency Rotatable Modular 1



Detached Driver Box and Plug and Play Connecting Cable

Can always put the driver on the bottom of

pole with SOGA quick connection cable

175lm/W 1500W LED Sports Field Lights High Efficiency Rotatable Modular 2



Scope of application

the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers



175lm/W 1500W LED Sports Field Lights High Efficiency Rotatable Modular 3
