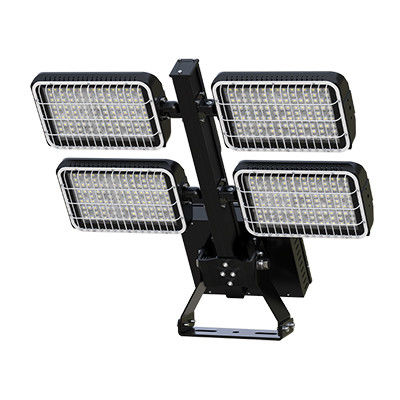

1800W Football Stadium Lights Rotatable Modular Soccer Field Lights ROHS

Brand Name:	SOGA
Model Number:	SG-BA-Y1200W
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS CE IK08 IP65

Wattage/module:

250 Or 300w

Optional Accessories:

Optional Accessories

Bracket:

Stainless Steel

Driver:

Meanwell, Sosen, Inventronics

IK Rate:

Windload Test:

17class Windload(56.1-61.2m/s, 240kg/square Meter)

L70 Hour:

＞60.000h

Application:

Football Soccer Stadium

Highlight:

1800W Football Stadium Lights

Football Stadium Lights Rotatable

Soccer Field Lights ROHS

Product Description

Sports Light With Dark Housing 1800W High Efficiency 175lm/W Rotatable Modular 17 Class Wind Load IK08 CRI90

SPECIFICATIONS

SOGA patent design under the inspiration of Barrett rifle. Which is similar as the rifle, Precise targeting is the most outstanding feature of SOGA Barrett Series Sports lights, and also with other competitive features as below:

Precise target lighting with the all-direction rotatable modular design

Glare Control with light spill cover

Class 17 wind load resistance

Free Dialux Simulation

Broadcast standard TLCI＞90

No exposed electric wire

Wireless Control

Detachable driver box

Quick connection plug

Dimming Solutions	0-10v Dimming,dali,clo,Zigbee Technology
Power Factor	＞0.95
CCT	3000k 4000k 5000k 5700k 6500k
Warranty	5 Yrs Warranty
Wireless Contro	Available
IP Rate	IK08
Driver	Meanwell, Sosen, Inventronics
L70 Hour	＞60.000h

MODEL	SG-BA-Y1000W	SG-BA-Y1200W	SG-BA-Y1500W	SG-BA-Y1800W
WATTAGE	1000W	1200W	1500W	1800W
MODEL QTY	4	4/5	5/6	6
WATTAGE/MODULE	250W	250 OR 300W	250 OR 300W	300W
LUMEN EFFICIENCY	145-175LM/W	145-175LM/W	145-175LM/W	145-175LM/W
LUMEN OUTPUT	145000-175000LM	174000-210000LM	217500-262500LM	261000-315000LM

Ultra-thick Stainless Steel Bracket

7.5mm stainless steel installation bracket, Rugged

Weather-Tight Design

1800W Football Stadium Lights Rotatable Modular Soccer Field Lights ROHS 0

Stainless Steel Conduit

Protect the cable from any potential damage ,

like bird, rugged weather etc.

1800W Football Stadium Lights Rotatable Modular Soccer Field Lights ROHS 1

17 Grade Windload Resistant

IP66 Ingress Protection

10KV Surge Protection

1800W Football Stadium Lights Rotatable Modular Soccer Field Lights ROHS 2

Scope of application

the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers

1800W Football Stadium Lights Rotatable Modular Soccer Field Lights ROHS 3
