| Brand Name: | SOGA |
| Model Number: | BA-H1800W |
| Payment Terms: | L/C, T/T, Western Union |

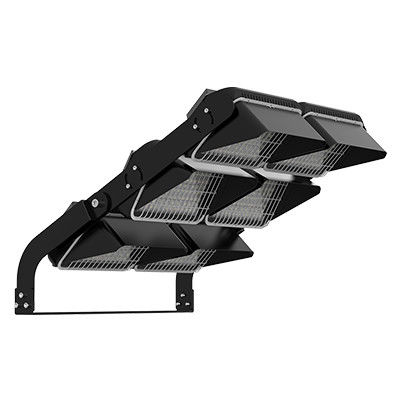

TLCI ＞90 High Lumen Output Rotatable LED Stadium Light LED Sports Field Lights
SPECIFICATIONS
SOGA Barrett H Series LED sports light delivers both precise symmetric and asymmetric light distribution, the unique backlight cut-off controlling and professional asymmetric optical design can effectively avoid the spill light in the neighborhood. With these outstanding features and excellent lighting performance, Barrett H Series LED sports light will be your best choice for high residential area lighting and professional sports stadium lighting. Meanwhile, the latest LED technology we applied on Barrett Series provides very low light depreciation and high lumen output, saving up to 60% energy compared to traditional HID flood lights. Smart wireless long-distance dimming control provides more energy saving. Rotatable modules allows slightly adjusting light distribution to reach a more precise lighting on your fields.
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Smart Wireless Control System
Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.

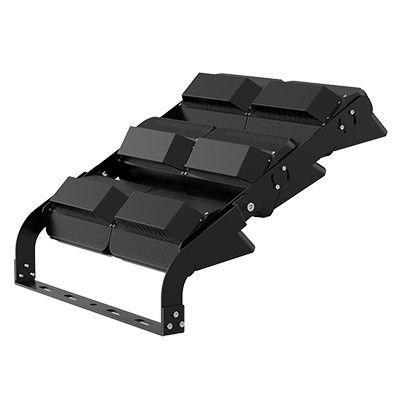

Protection Mesh Cover on Back
Keep the lamp always clean from the bird droppings or leaves,
avoid the birds build the nests on lamp. The perfect heat
dissipation performance on lamp will be ensured at the same time.
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
