| Brand Name: | SOGA |
| Model Number: | BA-H900W |
| Payment Terms: | L/C, T/T, Western Union |

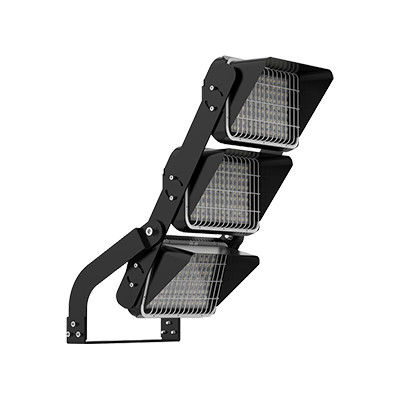

LED Sports Field Lights Smart Wireless Control System High Quality Floodlight
SPECIFICATIONS
SOGA Barrett H Series LED sports light delivers both precise symmetric and asymmetric light distribution, the unique backlight cut-off controlling and professional asymmetric optical design can effectively avoid the spill light in the neighborhood. With these outstanding features and excellent lighting performance, Barrett H Series LED sports light will be your best choice for high residential area lighting and professional sports stadium lighting. Meanwhile, the latest LED technology we applied on Barrett Series provides very low light depreciation and high lumen output, saving up to 60% energy compared to traditional HID flood lights. Smart wireless long-distance dimming control provides more energy saving. Rotatable modules allows slightly adjusting light distribution to reach a more precise lighting on your fields.
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
DMX Amusement Function
Bring all audience an amazing colorful lighting effect
before the match begin. One lamp is enough for the
amusement and functional lighting.

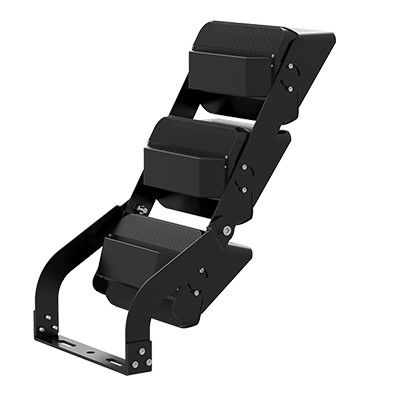

Ultra-thick Stainless Steel Bracket
7.5mm stainless steel installation bracket, Rugged
Weather-Tight Design
17 Grade Windload Resistant
IP66 Ingress Protection
10KV Surge Protection
service
with the "User first, customer first" Company motto, quality assurance , economic price , fast Delivery time is our only faith. we will try our best to make every customer to enjoy the the most flexible,efficient services.We sincere hope that we can seek the common development and cooperation with the customer together to achieve a win-win situation.
|
