| Brand Name: | SOGA |
| Model Number: | SG-BA-Y1200W |
| Payment Terms: | L/C, T/T, Western Union |

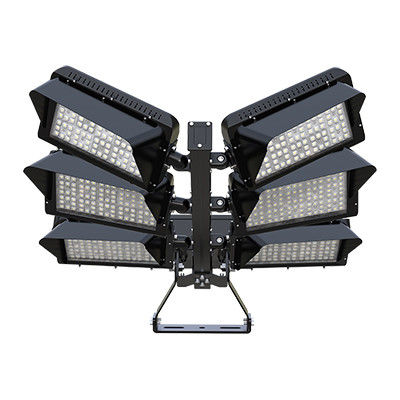

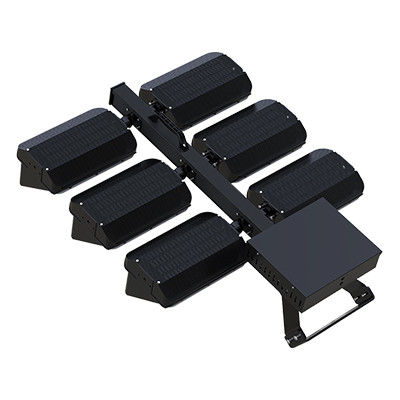

Outdoor Light With Dark Housing 1800W LED5050 Rotatable Modular 17 Class Wind Load Aluminum & Stainless Steel
SPECIFICATIONS
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting et
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 360°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| Operating Temp | -40℃ To 55℃ |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | SG-BA-Y1000W | SG-BA-Y1200W | SG-BA-Y1500W | SG-BA-Y1800W |
| WATTAGE | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 4 | 4/5 | 5/6 | 6 |
| WATTAGE/MODULE | 250W | 250 OR 300W | 250 OR 300W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Finned Style heatsink
The air come through will Easily bring out the heat on board,better for the heat dissipation,and lighter for installation
Precise asymmetric light distribution
delivers precise asymmetric light distribution,
Unique backlight cut-off controlling avoid spill light in the neighborhood
Protection Mesh Cover on Back
Keep the lamp always clean from the bird droppings or leaves,
avoid the birds build the nests on lamp. The perfect heat
dissipation performance on lamp will be ensured at the same time.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
