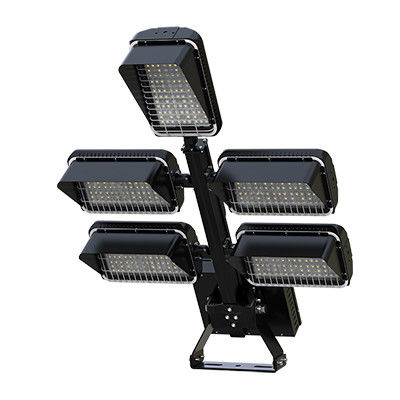

175LM/W 1200W Outdoor LED Sports Lights Rotatable Modular High Efficiency

Place of Origin China
Brand Name SOGA
Certification ROHS CE IK08 IP65
Model Number SG-BA-Y1200W
Delivery Time 15
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage AC90-305V/AC108-528V Housing Aluminum
Led Brand Lumileds 5050 Rotatable Modular Design Vertically 360°+horizontally180°
CRI 70 80 90 Wattage/module 250 Or 300w
Operating Temp -40℃ To 55℃ Dimming Solutions 0-10v Dimming,dali,clo,Zigbee Technology
High Light

175LM/W Outdoor LED Sports Lights

,

1200W Outdoor LED Sports Lights

,

1200W LED Light Rotatable

Leave a Message
Product Description

Sports Light With Dark Housing 1200W High Efficiency 175lm/W Rotatable Modular 17 Class Wind Load IK08 CRI90



SPECIFICATIONS

which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting et



Input Voltage AC90-305V/AC108-528V
Housing Aluminum
Led Brand Lumileds 5050
Rotatable Modular Design Vertically 360°+horizontally180°
CRI 70 80 90
Wattage/module 250 Or 300w
Operating Temp -40℃ To 55℃
Windload Test 17class windload(56.1-61.2m/s, 240kg/square meter)
Driver Box Detachable SOGA Electrical box



MODEL SG-BA-Y1000W SG-BA-Y1200W SG-BA-Y1500W SG-BA-Y1800W
WATTAGE 1000W 1200W 1500W 1800W
MODEL QTY 4 4/5 5/6 6
WATTAGE/MODULE 250W 250 OR 300W 250 OR 300W 300W
LUMEN EFFICIENCY 145-175LM/W 145-175LM/W 145-175LM/W 145-175LM/W
LUMEN OUTPUT 145000-175000LM 174000-210000LM 217500-262500LM 261000-315000LM





Higher Uniformity

175LM/W 1200W Outdoor LED Sports Lights Rotatable Modular High Efficiency 0



Smart Wireless Control System

Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.

175LM/W 1200W Outdoor LED Sports Lights Rotatable Modular High Efficiency 1

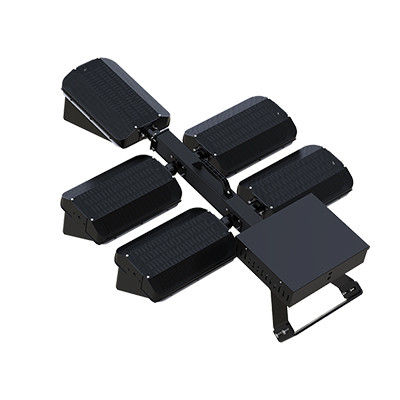

Rotatable Modular Design

Each module can be rotated vertically 360°+ horizontally 180°,

bring you more flexible lighting solutions and more precise target lighting.

175LM/W 1200W Outdoor LED Sports Lights Rotatable Modular High Efficiency 2

175LM/W 1200W Outdoor LED Sports Lights Rotatable Modular High Efficiency 3
