| Brand Name: | SOGA |
| Model Number: | SG-BA-E900W |
| Payment Terms: | L/C, T/T, Western Union |

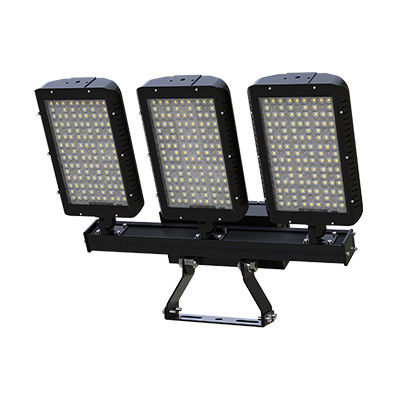

Sports Light With Dark Housing 900W High Efficiency 175lm/W Rotatable Modular 17 Class Wind Load IK08 CRI90
SPECIFICATIONS
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting etc
| CCT | 3000k 4000k 5000k 5700k 6500k |
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| MODEL | SG-BA-E250W | SG-BA-E300W | SG-BA-E500W | SG-BA-E600W | SG-BA-E750W | SG-BA-E750W |
| WATTAGE | 250W | 300W | 500W | 600W | 750W | 900W |
| MODEL QTY | 1 | 1 | 2 | 2 | 3 | 3 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 36250-43750LM | 43500-52500LM | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM |
Rotatable Modular Design
Each module can be rotated vertically 360°+ horizontally 180°,
bring you more flexible lighting solutions and more precise target lighting.
Stainless Steel Conduit
Protect the cable from any potential damage ,
like bird, rugged weather etc.

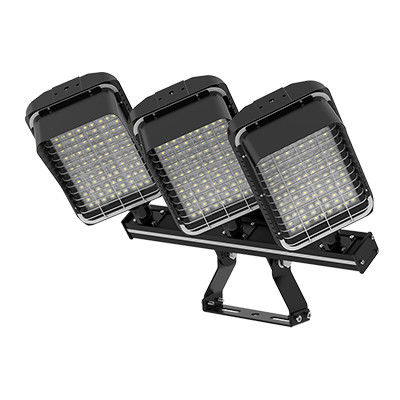

Protection Mesh Cover on Back
Keep the lamp always clean from the bird droppings or leaves,
avoid the birds build the nests on lamp. The perfect heat
dissipation performance on lamp will be ensured at the same time.
Smart Wireless Control System
Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.
Scope of application
the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers
|
