| Brand Name: | SOGA |
| Model Number: | SG-HK1440W |
| Payment Terms: | L/C, T/T, Western Union |

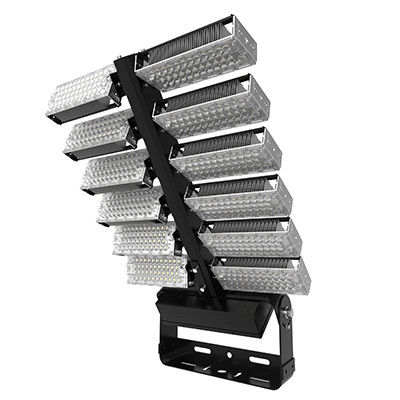

LED Stadium Light Long Working Lifetime High Lighting Efficiency Plug And Play Stem
SPECIFICATIONS

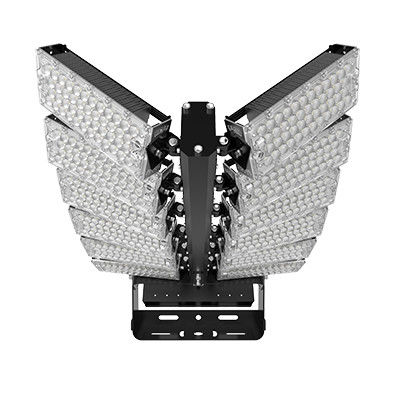

Vertically and horizontally rotatable LED bars make more Fexible and effcient light distribution to reach very high uniformity on the ground; Anodized aluminum bars, stainless steel screws and powder-coated holders & bracket make the whole lamp anti-corrosive without cracking or peeling. Rotation degrees are marked on housing and LED bars; Optional stainless steel installation bracket. Finlike heatsink design provides perfect heat management and improves working lifetime. Modular design not only allows easy assembly and mainte nance but also provides flexibility of power consumption.
| input Voltage | AC90-305V/AC108-528V |
| Bracket | Iron or Stainless Steel |
| Led Brand | Lumileds 5050 |
| Driver | Meanwell, Sosen, Inventronics |
| CRI | 70 80 90 |
| 70 80 90 | 0-10v Dimming, Dali, Clo, Zigbee Techonology |
| Operating Temp | -40°C to 55°C |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | SG-HK480W | SG-HK720W | SG-HK960W | SG-HK1200W | SG-HK1440W |
| MODEL QTY | 4 | 6 | 8 | 10 | 12 |
| POWER | 400/480W | 600/720W | 800/960W | 1000/1200W | 1200/1440W |
| LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W |
| LUMEN OUTPUT | 60000-72000LM | 90000-108000LM | 120000-144000LM | 150000-180000LM | 180000-216000LM |
Smart Wireless Control System
Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.
Stainless steel brackets
and detachable driver box
High-Definition Broadcasting Standard
High TLCI solution can be offered to meet
high-level broadcasting sports event.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
