| Brand Name: | SOGA |
| Model Number: | SG-HK960W |
| Payment Terms: | L/C, T/T, Western Union |

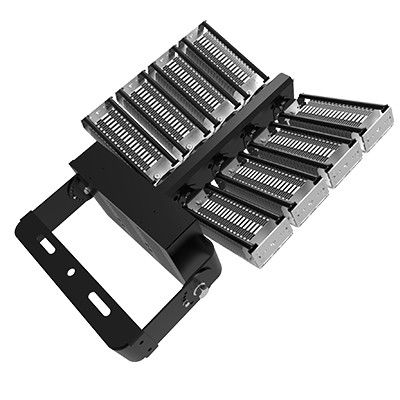

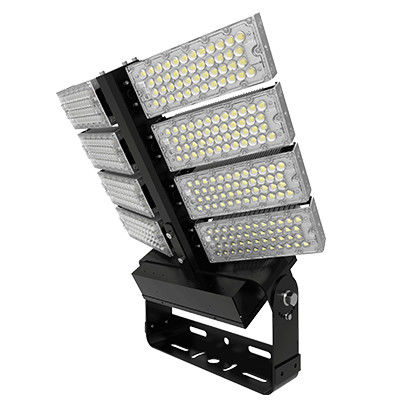

LED Sports Light Vertically And Horizontally Rotatable LED Bars 5 Years Warranty IP65 Waterproof
SPECIFICATIONS
Vertically and horizontally rotatable LED bars make more Fexible and effcient light distribution to reach very high uniformity on the ground; Anodized aluminum bars, stainless steel screws and powder-coated holders & bracket make the whole lamp anti-corrosive without cracking or peeling. Rotation degrees are marked on housing and LED bars; Optional stainless steel installation bracket. Finlike heatsink design provides perfect heat management and improves working lifetime. Modular design not only allows easy assembly and mainte nance but also provides flexibility of power consumption.
| input Voltage | AC90-305V/AC108-528V |
| Bracket | Iron or Stainless Steel |
| Led Brand | Lumileds 5050 |
| Driver | Meanwell, Sosen, Inventronics |
| CRI | 70 80 90 |
| 70 80 90 | 0-10v Dimming, Dali, Clo, Zigbee Techonology |
| Operating Temp | -40°C to 55°C |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | SG-HK480W | SG-HK720W | SG-HK960W | SG-HK1200W | SG-HK1440W |
| MODEL QTY | 4 | 6 | 8 | 10 | 12 |
| POWER | 400/480W | 600/720W | 800/960W | 1000/1200W | 1200/1440W |
| LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W |
| LUMEN OUTPUT | 60000-72000LM | 90000-108000LM | 120000-144000LM | 150000-180000LM | 180000-216000LM |
Finlike heatsink provides
perfect heat dissipation
360°+150° rotatable
Vertically & horizontally rotatable modules
Scope of application
the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers
|
