| Brand Name: | SOGA |
| Model Number: | Barrett H 1200W |
| MOQ: | 1 |
| Packaging Details: | 583x453x161mm |
| Payment Terms: | L/C, T/T, Western Union |

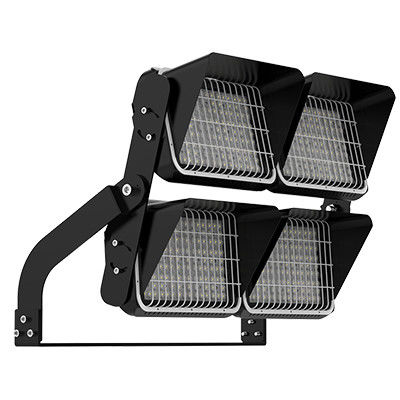

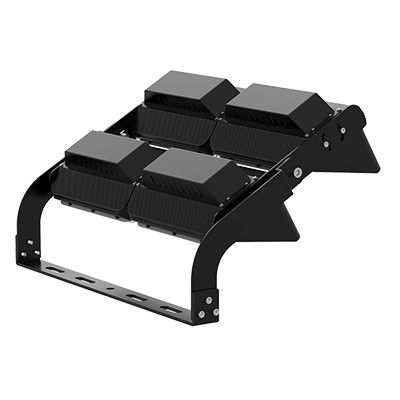

Outdoor LED Sports Lights Minimum Spill Light Vertical Horizontal LED Sports Lighting
SPECIFICATIONS
SOGA Barrett H Series LED sports light delivers both precise symmetric and asymmetric light distribution, the unique backlight cut-off controlling and professional asymmetric optical design can effectively avoid the spill light in the neighborhood. With these outstanding features and excellent lighting performance, Barrett H Series LED sports light will be your best choice for high residential area lighting and professional sports stadium lighting.
Perfect obtrusive light control
High lighting uniformity
Triple protection from bird harms and rugged weather
Smart wireless control system
RGBW amusement lighting function
Detachable driver box
10KV surge protection
Stand 17grade windload
| Warranty | 5 Yrs Warranty |
| Wireless Control | Available |
| IP Rate | IP66 |
| Beam Angle | 20°, 40°, 60°, 90°, asymmetric 50°, A60, A60W |
| Bracket | Stainless Steel |
| Optional Accessories | Light Spill Cover；protection Shield; Laser Pen; Spd |
| Ik Rate | IK08 |
| Driver | Meanwell, Sosen, Inventronics |
| L70 Hour | ＞60.000h |
| Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Ultra-thick Stainless Steel Bracket
Stainless Steel Conduit
Protect the cable from any potential damage ,
like bird, rugged weather etc.
FAQ:
Q1. What about the VS lead time ?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Does VS have any MOQ limit for LED Lights order ?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4. How does VS proceed an order for LED Fin High Bay Lights ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
|
