| Brand Name: | SOGA |
| Model Number: | SG-EG-1080W |
| Payment Terms: | L/C, T/T, Western Union |

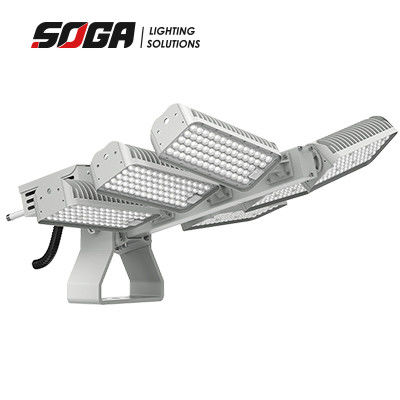

LED sports light DAli dimming IP66 sports light cricket court
SPECIFICATIONS
SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:
Patent SOGA Streamlined Design
High-quality Die-casting aluminium housing

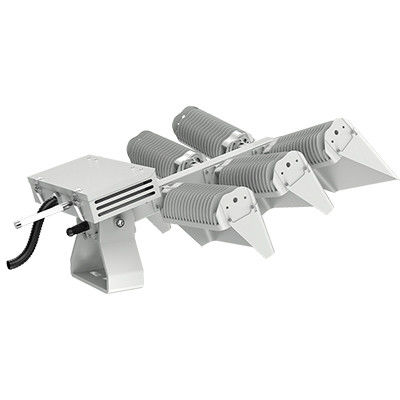

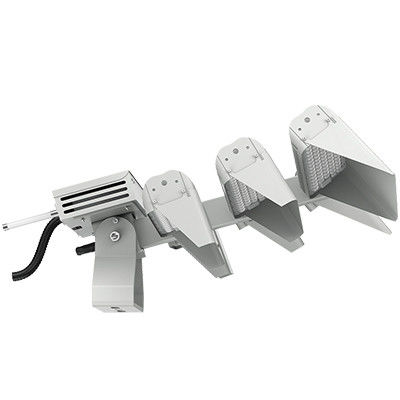

Vertically and Horizontally Adjustable Modular Design
Smaller Size and Lighter Weight
Anti-Glare & Obtrusive Light Control
Easy Aiming Check One-size Screws for all adjustment
Tool-free driver box
Quick Connected Electrical Box
Wireless Smart Control
Wireless or DMX Entertainment System
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| LED Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 80°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/Module | Symmetrical:180W Asymmetrical:150W |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | Dimming Solutions |
| MODEL | SG-EG-720W | SG-EG-1080W | SG-EG-1440W | SG-EG-1800W |
| WATTAGE | 720W | 1080W | 1440W | 1800W |
| MODEL QTY | 4 | 6 | 8 | 10 |
| LUMEN EFFICIENCY | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 122400LM | 183600LM | 244800LM | 306000LM |
Smaller Size and Lighter Weight
Each module is 150w but with only 286*124*74.5MM and 1174g . best option for retrofits, new installations, and maintenance.
One-size Screws for all adjustment
SOGA takes all tiny details in consideration when do the product design.
we use one-size screws for the modules adjustment,
one simple L screw driver is enough to adjust the modules from left to right, up to down.
High-quality Die-casting aluminium housing
- higher IK (Impact Protection) rating approved
- high-performance thermal management ensures the stability of the lighting fixture.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
