| Brand Name: | SOGA |
| Model Number: | SG-LUNA-600W |
| Payment Terms: | L/C, , T/T, Western Union |

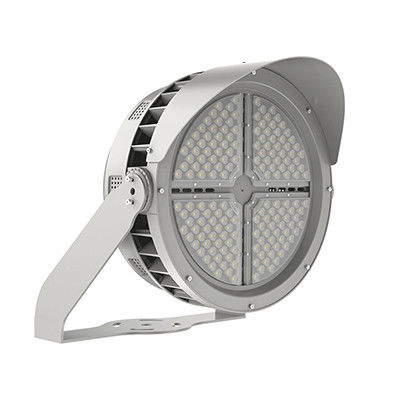

LED stadium lighting Court Gray Aluminum bracket park landscape
Product Description
With the classical appearance and high lumen output,Luna Series is born to meet the variable needs of new and retrofit applications at professional and collegiate level outdoor stadiums. At the meantime, Luna series also has a outstanding performance on glare control, and lighting uniformity, energy saving, wireless smart control etc which can perfectly meet the stringent performance requirements of fans, players, and broadcast.
High lumen output
Powder-coated aluminum housing
10KV Current Surge
Class 17 wind load resistance
Smart Wireless control
Free Dialux Simulations
Detachable Driver BOX
| Input Voltage | AC90-305V/AC108-528V |
| Bracke | Stainless Steel |
| LED Brand | Luxeon 5050 |
| Driver | Driver |
| CRI | 70 80 90 |
| Dimming Solutions | DALI, |
| Operating Temp | -40°C to 55°C |
| CCT | 5000K |
| Power Factor | ＞0.95 |
| Wireless Control | Available |
| Warranty | 5 yrs warranty |
| Beam Angle | 30°/60°/90° |
| IP Rate | IP65 |
| Housing colo | Gray |
| Driver box | Detachable |
| Wind Load | Can stand 17 Class Wind load (56.1~61.2 m/s) |
| Housing | Aluminum |
| L70 Hour | ＞100,000H |
| MODEL | SG-LUNA-300W | SG-LUNA-400W | SG-LUNA-600W | SG-LUNA-700W | SG-LUNA-800W |
| LM/W | 150LM/W | 150LM/W | 150LM/W | 150LM/W | 150LM/W |
| POWER | 300W | 400W | 600W | 700W | 800W |
| LUMEN OUTPUT | 45000LM | 60000LM | 90000LM | 105000LM | 120000LM |
Die-casting Heatsink
Durable and no moving parts
Smart Wireless Control System
Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.
Light Spill Cover
To control the light pollution better
especially needed when lamps are applied near the airport etc.
Rotatable Installation Bracket
Bracket can be rotated by 120°
easier to adjust the lamp angle during the installation
| Shipping way | Delivery time |
| Express: DHL,TNT,Fedex, UPS | 3-10 days |
| By Air | 7-20 days |
| By sea | 15-60 days |
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
