| Brand Name: | SOGA |
| Model Number: | SG-HK720W |
| Packaging Details: | 958X776X212MM |
| Payment Terms: | L/C, T/T, Western Union |

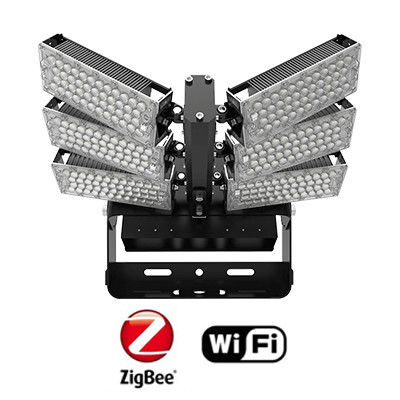

LED Sports light vertically and horizontally rotatable LED bars 5 years warranty IP65 waterproof
SPECIFICATIONS
Hawk Series is the 1st generation of our all-direction rotatable sports light. Classic never goes out of date! We did a lot of updates and optimizations on it based on years of sales experience, its biggest advantage will be obviously shown on those small sports fields which need high uniformity
From 480W to 1440W
Light Weight with fin-style Aluminum heatsink
Precise target lighting with the rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulations
Broadcast standard TLCI＞90
Smart Wireless Control
Detachable driver box
Quick connection plug
| input Voltage | AC90-305V/AC108-528V |
| Bracket | Iron or Stainless Steel |
| Led Brand | Lumileds 5050 |
| Driver | Meanwell, Sosen, Inventronics |
| CRI | 70 80 90 |
| 70 80 90 | 0-10v Dimming, Dali, Clo, Zigbee Techonology |
| Operating Temp | -40°C to 55°C |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | SG-HK480W | SG-HK720W | SG-HK960W | SG-HK1200W | SG-HK1440W |
| MODEL QTY | 4 | 6 | 8 | 10 | 12 |
| POWER | 400/480W | 600/720W | 800/960W | 1000/1200W | 1200/1440W |
| LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W | 145-155LM/W |
| LUMEN OUTPUT | 60000-72000LM | 90000-108000LM | 120000-144000LM | 150000-180000LM | 180000-216000LM |
Finlike heatsink provides
perfect heat dissipation
17 Grade Windload Resistant
IP66 Ingress Protection
10KV Surge Protection
Stainless steel brackets
and detachable driver box
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
