| Brand Name: | SOGA |
| Model Number: | Barrett H 600W |
| MOQ: | 1 |
| Packaging Details: | 583x453x161mm |
| Payment Terms: | L/C, T/T, Western Union |
Asymmetric version strict AS/NZS 4282:2019 LED sports lighting
SPECIFICATIONS

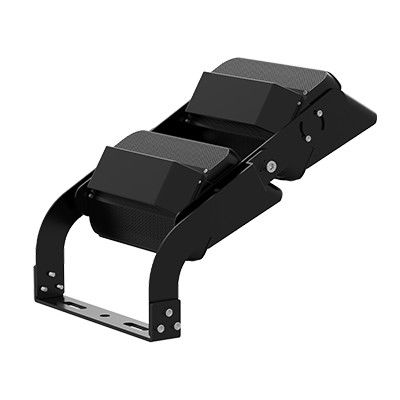

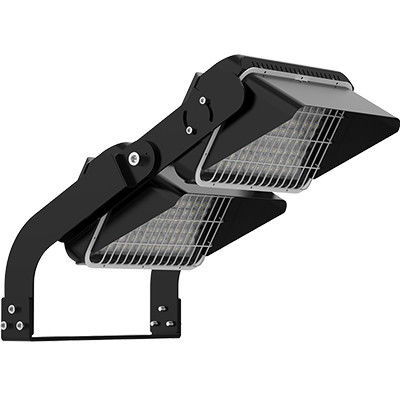

Barrett H V2.0 Asymmetric version, which is specially designed for those high-end market which have strict standards on obtrusive light control on sports lighting. With our real asymmetric design, this series can be installed horizontally with less than 10°elevation angle. Can pass the most strict AS/NZS 4282:2019 and EN12193: 2018. Your professional choice for your sports lighting projects in high residential area.
Perfect obtrusive light control
High lighting uniformity
Triple protection from bird harms and rugged weather
Smart wireless control system
RGBW amusement lighting function
Detachable driver box
10KV surge protection
Stand 17grade windload
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically Rotatable Modules |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| 250 Or 300w | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| CCT | 3000k 4000k 5000k 5700k 6500k |
| MODEL | BA-H500W | BA-H600W | BA-H750W | BA-H900W | BA-H1000W | BA-H1200W | BA-H1500W | BA-H1800W |
| WATTAGE | 500W | 600W | 750W | 900W | 1000W | 1200W | 1500W | 1800W |
| MODEL QTY | 2 | 2 | 3 | 3 | 4 | 4 | 6 | 6 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Stainless Steel Conduit
Protect the cable from any potential damage ,
like bird, rugged weather etc.
Higher Uniformity
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
|
