Brand Name: | SOGA |
Model Number: | SG-BA-Y1200W |
Payment Terms: | L/C, T/T, Western Union |

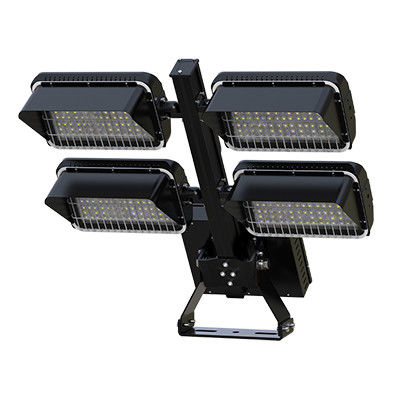

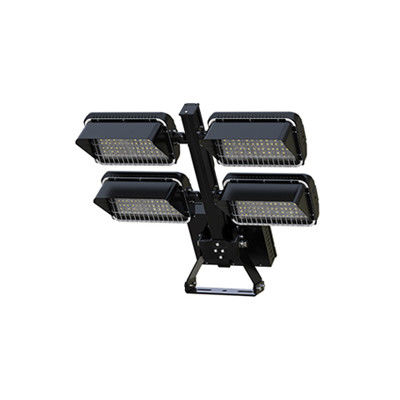

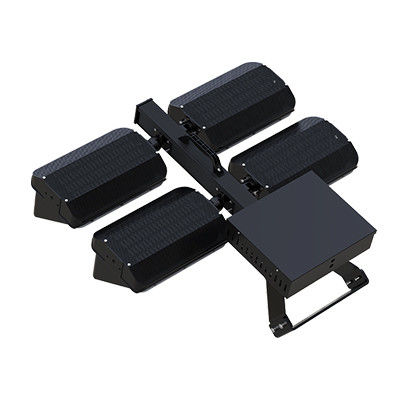

Sports Light With Dark Housing 1200W High Efficiency 175lm/W Rotatable Modular 17 Class Wind Load IK08 CRI90
SPECIFICATIONS
which is SOGA patent design under the inspiration of the Barrett Gun. With full-direction rotatable modular design and laser tech, precise target lighting is the most outstanding feature of SOGA BARRETTE Series. As our premium series, All components on BARRETT SERIES are with top-quality level, every single detail is showing SOGA’s ingenuity. The whole Barrett family will be your perfect choice for different kinds of stadium, Sports court, Arena, Seaport, Airport, Parking Lot, Outdoor area lighting et
Input Voltage | AC90-305V/AC108-528V |
Housing | Aluminum |
Led Brand | Lumileds 5050 |
Rotatable Modular Design | Vertically 360°+horizontally180° |
CRI | 70 80 90 |
Wattage/module | 250 Or 300w |
Operating Temp | -40℃ To 55℃ |
Windload Test | 17class windload(56.1-61.2m/s, 240kg/square meter) |
Driver Box | Detachable SOGA Electrical box |
MODEL | SG-BA-Y1000W | SG-BA-Y1200W | SG-BA-Y1500W | SG-BA-Y1800W |
WATTAGE | 1000W | 1200W | 1500W | 1800W |
MODEL QTY | 4 | 4/5 | 5/6 | 6 |
WATTAGE/MODULE | 250W | 250 OR 300W | 250 OR 300W | 300W |
LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
LUMEN OUTPUT | 145000-175000LM | 174000-210000LM | 217500-262500LM | 261000-315000LM |
Higher Uniformity
Smart Wireless Control System
Each lamp can be wireless controlled by your PC, phone or Pad. Different smart lighting levels can be set up in minutes without make any changes on the lamp - like lighting for daily training, lighting for semi-professional, lighting for professional sports event. More intelligent and more energy saving.
Rotatable Modular Design
Each module can be rotated vertically 360°+ horizontally 180°,
bring you more flexible lighting solutions and more precise target lighting.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
![]() |
