Outdoor LED Sports Lights
>

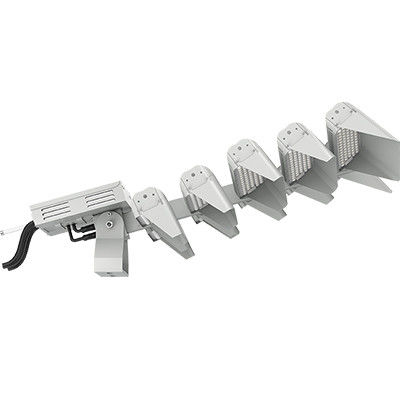

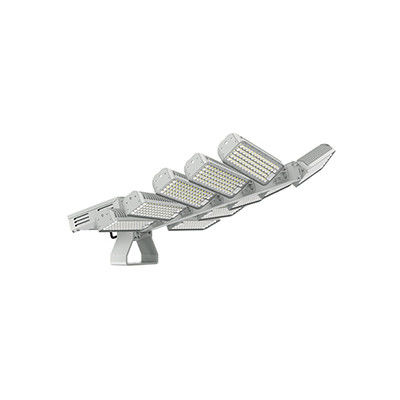

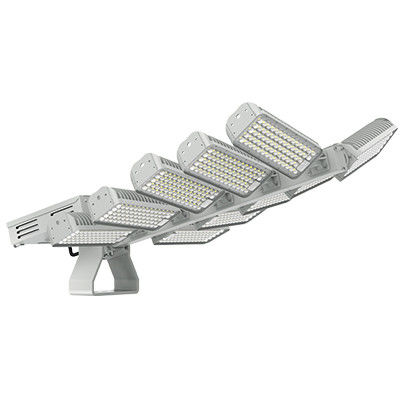

Stadium Outdoor LED Sports Lights

Stadium Outdoor LED Sports Lights

Brand Name: SOGA
Model Number: SG-EG-1500W
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
ROHS CE IK09 IP66
LED Brand:
Lumileds 5050
Power Factor:
>0.95
Warranty:
5 Yrs Warranty
IP Rate:
IP66
Wireless Control:
Available
Housing:
Aluminum
Bracket:
Aluminum
Windload Test:
17 Class Windload(56.1-61.2m/s, 240kg/square Meter)
Optional Accessories:
Spill Cover
L70 Hour:
>100.000h
Supply Ability:
1000
Highlight:

Stadium Outdoor LED Sports Lights

,

Outdoor LED Sports Lights Adjustable

,

IP66 Football Filed Lights

Product Description

Outdoor LED Sports Lights Sports Lighting Stadium Light 5-Year Warranty Football Filed



SPECIFICATIONS

SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:

Patent SOGA Streamlined Design
High-quality Die-casting aluminium housing
Vertically and Horizontally Adjustable Modular Design
Smaller Size and Lighter Weight
Anti-Glare & Obtrusive Light Control
Easy Aiming Check One-size Screws for all adjustment
Tool-free driver box
Quick Connected Electrical Box
Wireless Smart Control
Wireless or DMX Entertainment System



Power Factor >0.95
CCT 3000K 4000K 5000K 5700K 6500K
Warranty 5 Yrs Warranty
Wireless Control Available
IP Rate IP66
Beam Angle 20°, 40°, 60°, asymmetric A60, A60W, A70, A70W



MODEL SG-EG-720W SG-EG-1080W SG-EG-1440W SG-EG-1800W
WATTAGE 720W 1080W 1440W 1800W
MODEL QTY 4 6 8 10
LUMEN EFFICIENCY 170LM/W 170LM/W 170LM/W 170LM/W
LUMEN OUTPUT 122400LM 183600LM 244800LM 306000LM



Quick Connected Electrical Box

SOGA offering the full set of waterproof Integrated electrical box when you need fix the drivers on the bottom of the pole. All drivers and full control system will be wired well ahead in SOGA factory. Waterproof plug and play connectors will be left out of the box for your quick connection.

Stadium Outdoor LED Sports Lights 0



Detachable Driver Kits

With its small size, drivers kits can be installed into the poles for faster installation and easier maintenance.

Stadium Outdoor LED Sports Lights 1





No Exposed Cable

All connecting cables are hided in the lamp housing with very well protection from the potential rugged weather or bird damage .at the mean time, make the lamp always looked tidy and clean.

Stadium Outdoor LED Sports Lights 2



FAQ:

Q1. What about the VS lead time ?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q2. Does VS have any MOQ limit for LED Lights order ?

A: Low MOQ, 1pc for sample checking is available.

Q3. How do you ship the goods and how long does it take to arrive ?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q4. How does VS proceed an order for LED Fin High Bay Lights ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Stadium Outdoor LED Sports Lights 3
